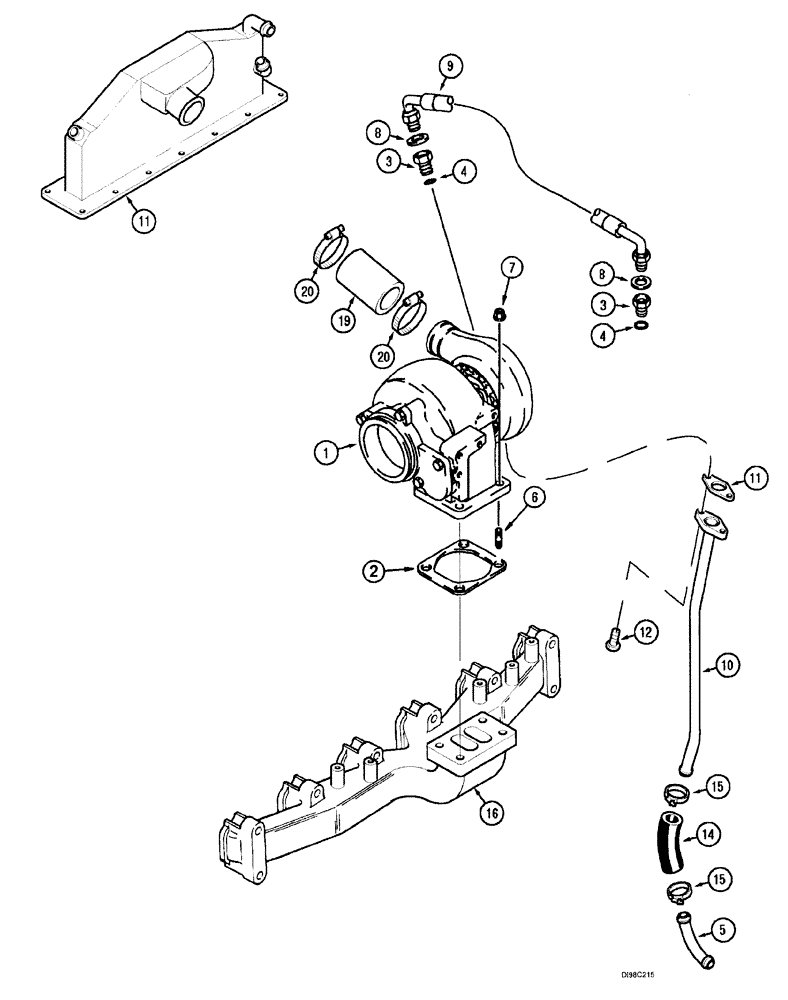

Запчасти Case IH SPX3150 (042) - ENGINE, TURBOCHARGER AND CONNECTIONS, SPX3185 (10) - ENGINE

1

TURBOCHARGER, see Figure 046

1шт.

2

J919369

GASKET,0.5mm Thk

SEAL

1шт.

3

J919687

HYD CONNECTOR

ADAPTER, Includes: 4

2шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

5

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE

1шт.

6

J818823

STUD

M10 x 42

4шт.

7

J818824

FLANGE NUT

M10

4шт.

8

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

9

J920603

HOSE

Supply

1шт.

10

J944048

TUBE,0.875" OD

drain

1шт.

11

J931350

GASKET

SEAL

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

14

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

15

86536660

HOSE CLAMP,25mm - 44mm

2шт.

16

MANIFOLD exhaust, 13/16 - 1-1/2, see Figure 038

1шт.

19

J916165

HOSE

1шт.

20

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.
