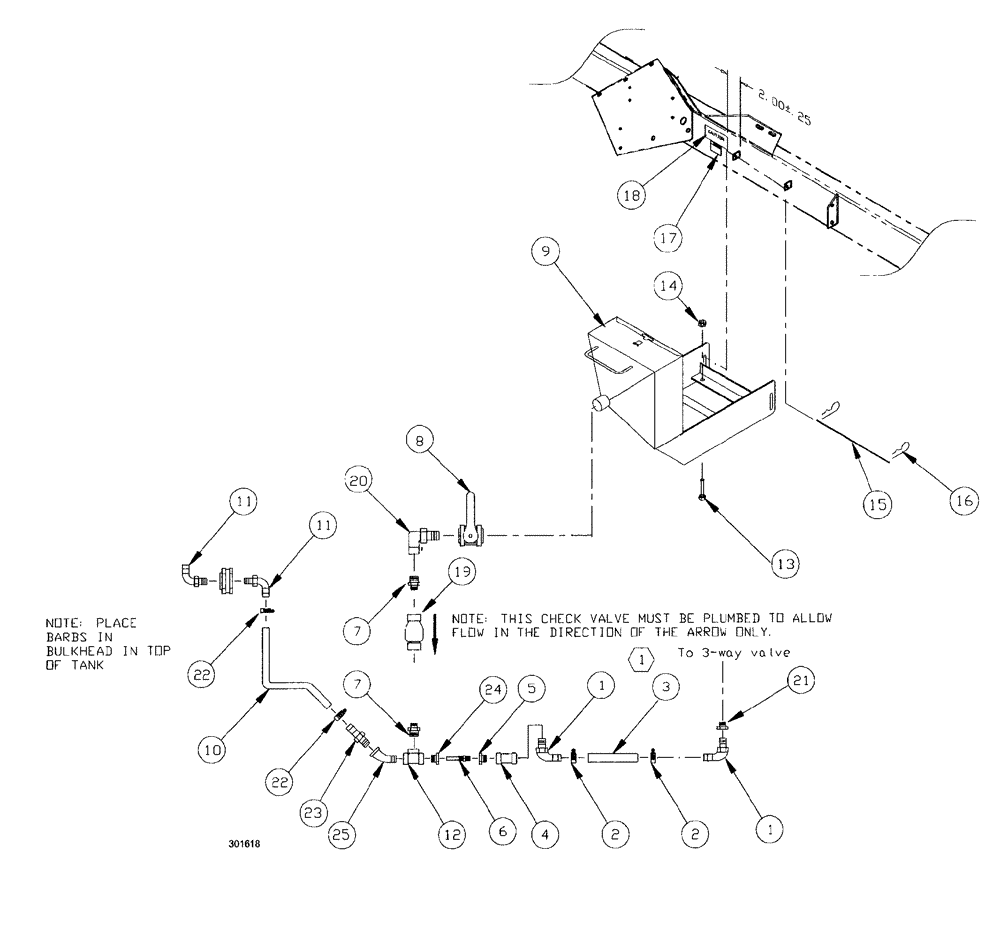

Запчасти Case IH SPX3150 (262) - OPTIONS, CHEMICAL INDUCTOR, ELIPTICAL (88) - ACCESSORIES

1

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

2

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

3

BN53760

HOSE,35.50"

1шт.

4

BN66968

COUPLING

1" Poly

1шт.

5

BN53665

BUSHING

1" x .75 Poly

1шт.

6

BN301610

VENTURI

Rework

1шт.

7

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

8

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

9

BN65145

FUNNEL

WELDMEMT, chemical inductor

1шт.

10

BN69413

HOSE,112.00"

EPDM

1шт.

11

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

12

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

13

50285

BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

14

BN50072

NUT

Hex, 1/2"-13, G5, PL

4шт.

15

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

16

BN71006

COTTER PIN

1/8", #11

2шт.

17

BN63998

DECAL

Caution, chemicals

1шт.

18

BN23877

CAUTION DECAL

Chemical

1шт.

19

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

20

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

21

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1", Reducer Poly

1шт.

22

BN76093

HOSE CLAMP

#28, SS

2шт.

23

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

24

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

25

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.
