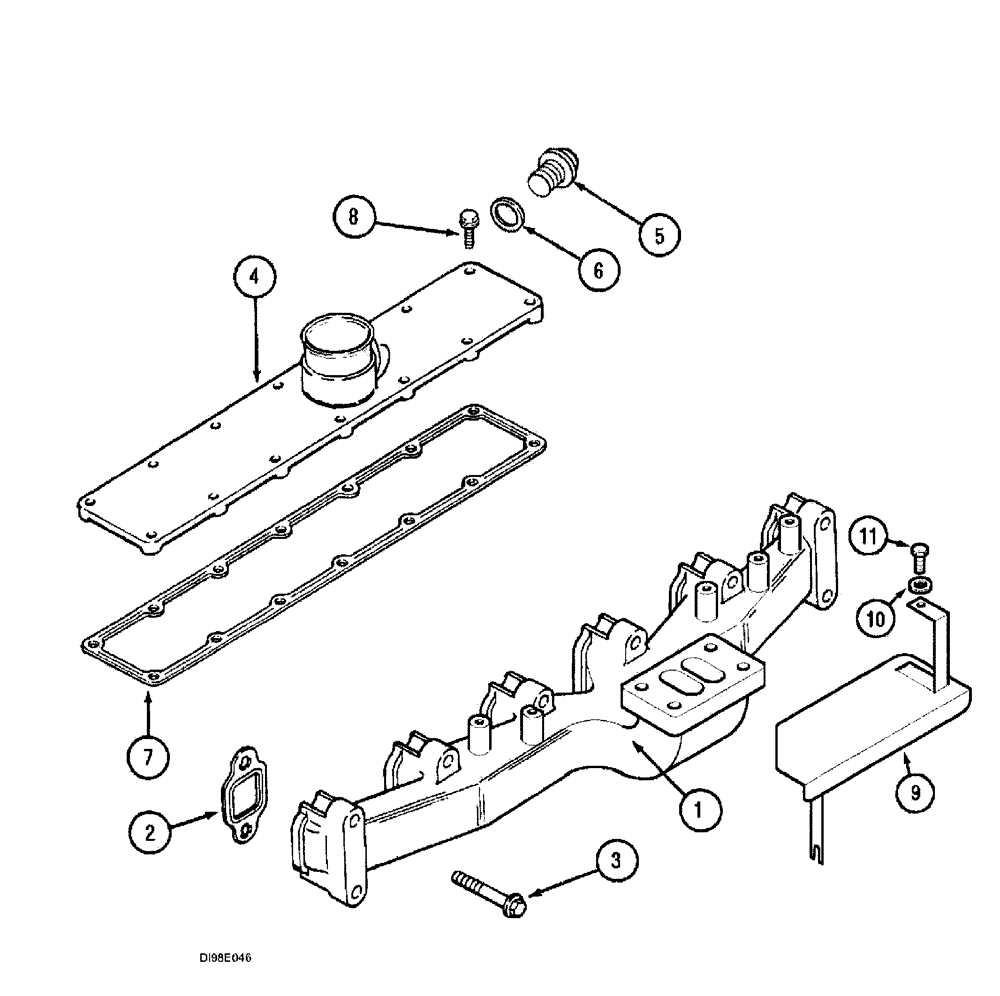

Запчасти Case IH SPX3150 (036) - ENGINE, MANIFOLD, SPX3150 (10) - ENGINE

1

J931745

MANIFOLD

exhaust

1шт.

2

J927154

GASKET,0.38mm Thk

SEAL

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

12шт.

A77418

KIT

Intake Manifold

1шт.

Consists of Refs. 4 - 6

1шт.

4

J904862

COVER

manifold, intake

1шт.

5

J907185

PLUG

1шт.

6

J906773

WASHER

1шт.

7

J931347

GASKET

SEAL

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

14шт.

9

224832A4

GUARD

SHIELD

1шт.

10

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.
