Запчасти Case IH SPX3150 (034) - ENGINE, CYLINDER BLOCK FRONT COVER (10) - ENGINE

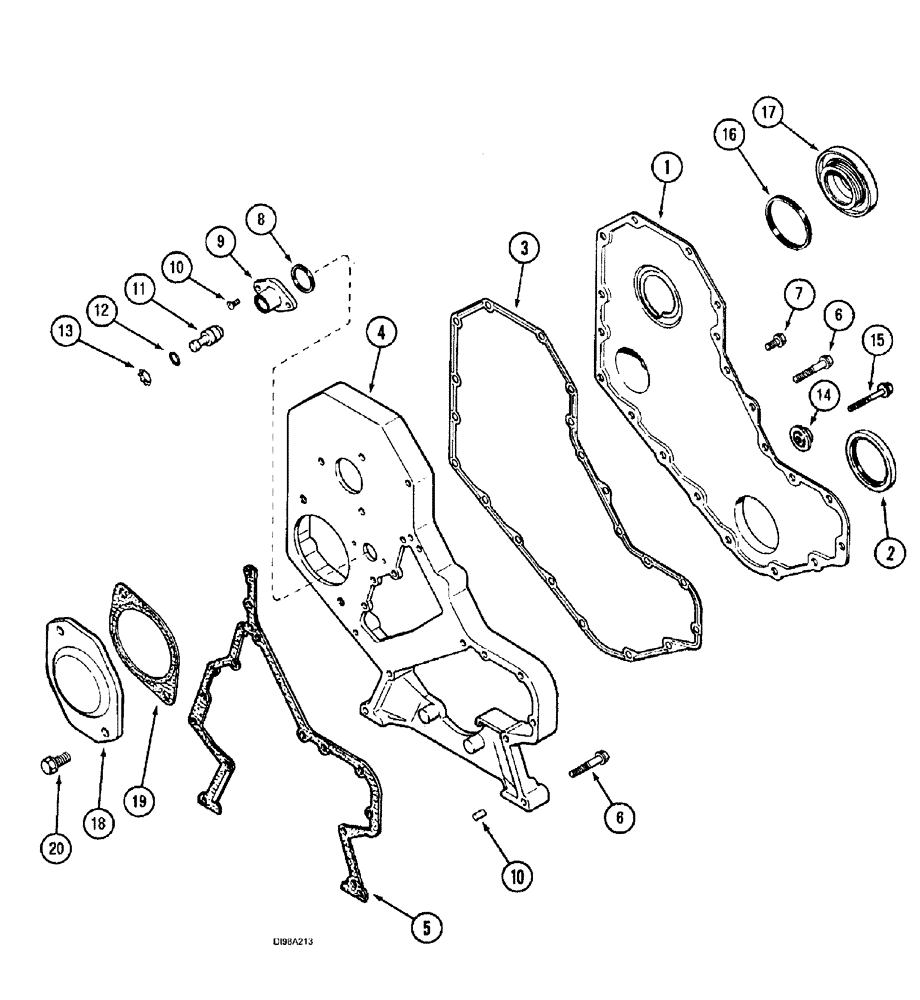

Схема запчастей Case IH SPX3150 - (034) - ENGINE, CYLINDER BLOCK FRONT COVER (10) - ENGINE
20
3
15
7
8
17
5
9
10
18
19
10
6
6
13
2
12
14
16
1
4
11

Артикул

Название

Примечание

Количество

1

J918675

COVER

gear, front

1шт.

2

J926430

SHAFT SEAL

CRANK, front

1шт.

Model SPX3150

1шт.

2

J933261

SHIELD

SEAL, CRANKSHAFT, front

1шт.

Model SPX3185

1шт.

3

J918673

GASKET,1.02mm Thk

SEAL, cover, front

1шт.

4

J932120

HOUSING

1шт.

5

J931351

GASKET

SEAL, housing

1шт.

6

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

13шт.

8

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

9

J919683

HOUSING

1шт.

10

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

11

J903924

PIN,18.87mm OD x 55mm L

1шт.

12

J913994

O-RING

1шт.

13

100-2587

SNAP RING,0.875", Int, #87

1шт.

14

J912772

RETAINER

1шт.

15

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

17

J903463

PLUG,M63 x 5

front access

1шт.

18

J914868

COVER

PLATE

1шт.

19

J929751

GASKET

SEAL

1шт.

20

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 23
