Запчасти Case IH SPX3150 (028) - ENGINE, ENGINE ASSEMBLY (10) - ENGINE

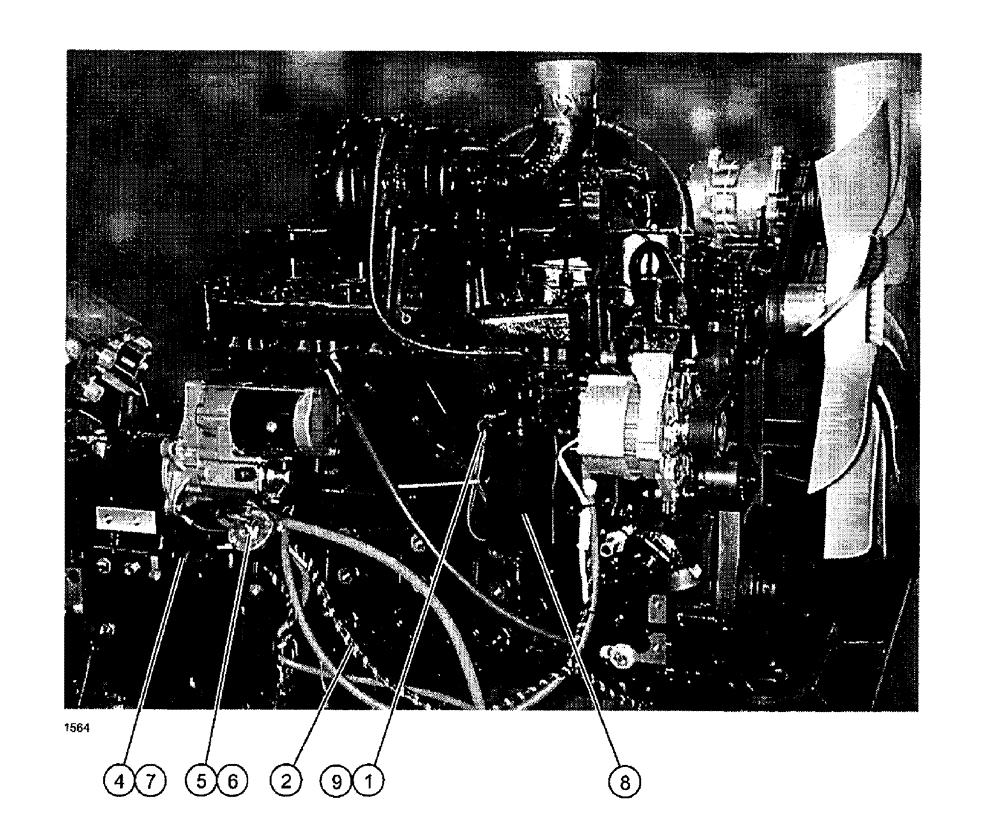

Схема запчастей Case IH SPX3150 - (028) - ENGINE, ENGINE ASSEMBLY (10) - ENGINE
4
7
5
2
9
1
6
8

Артикул

Название

Примечание

Количество

1

.

ELECTRIC CORD, for electric heater, 110 V, see Pg 60

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

2

BN313005

HARNESS

engine, CDC200

1шт.

3

321943A2

ENGINE ASSEMBLY

ENGINE ASSY CDC, 6TA-590, model SPX3185

1шт.

3

47465959R

REMAN-BASIC ENGINE

SPX3185 - Patriot Sprayer - 5/99-8/02. Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

3

47465959C

CORE-BASIC ENGINE

Return Part Number

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

3

321942A2

ENGINE ASSEMBLY

ENGINE ASSY CDC, 6T-590, model SPX3150

1шт.

3

243948A2R

REMAN-BASIC ENGINE

SPX3150 - Patriot Sprayer - 5/99-8/02

1шт.

3

243948A2C

CORE-BASIC ENGINE

Return Number

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

4

336441A1

TUBE,9.52 mm OD, 155, 28 mm Length

dipstick

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

5

336443A1

TUBE,190 mm Length

ASSEMBLY oil fill

1шт.

6

A77424

FILLER CAP

Filler Cap

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

7

J907714

DIPSTICK

short

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

8

.

FILTER oil, see Figure 048

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

9

.

HEATER engine block, 110 V, see Pg 60

1шт.

Parts available only through Case's North American Parts Organization, NAPO.

1шт.

Выбрано товаров: 22
