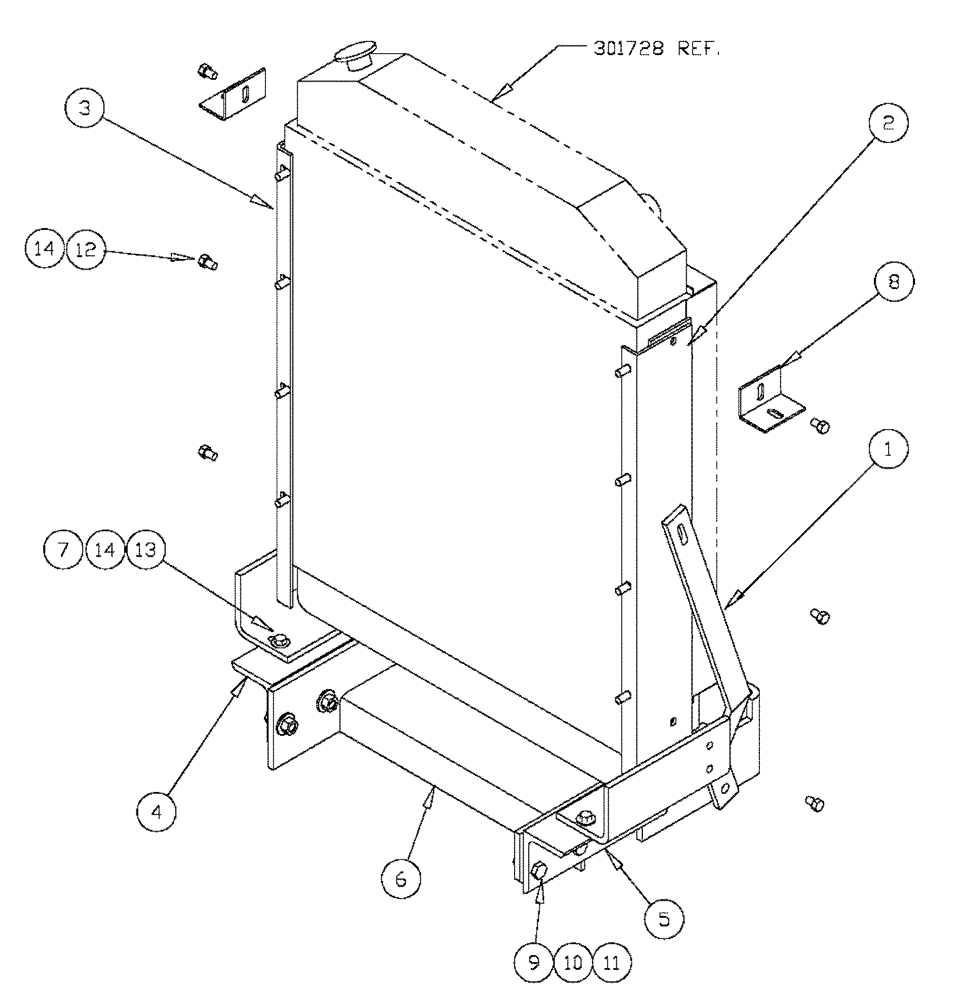

Запчасти Case IH SPX2130 (03-010) - RADIATOR MOUNT ASSEMBLY (01) - ENGINE

1

BN300652

SUPPORT

Brace-Radiator Mount

1шт.

2

BN300213

SUPPORT

Supt. Radiator L.H.

1шт.

3

BN300657

SUPPORT

Supt. Radiator R.H.

1шт.

4

BN300659

Angle MTG. Radiator R.H.

1шт.

5

BN300658

Angle MTG. Radiator L.H.

1шт.

6

BN29501

MOUNTING PARTS

Motor & Radiator

1шт.

7

BN50061

LOCK NUT

3/8"-16, G5, UNC, Whiz

4шт.

8

BN25430

MOUNTING PLATE

10 ga HRS 3.0 x 3.56

2шт.

9

50285

BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

10

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

11

BN50072

NUT

Hex, 1/2"-13, G5, PL

4шт.

12

BN50367

BOLT

3/8-16 X 1 , HH, G5

6шт.

13

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

14

BN50145

WASHER

3/8, FW, G5

12шт.
