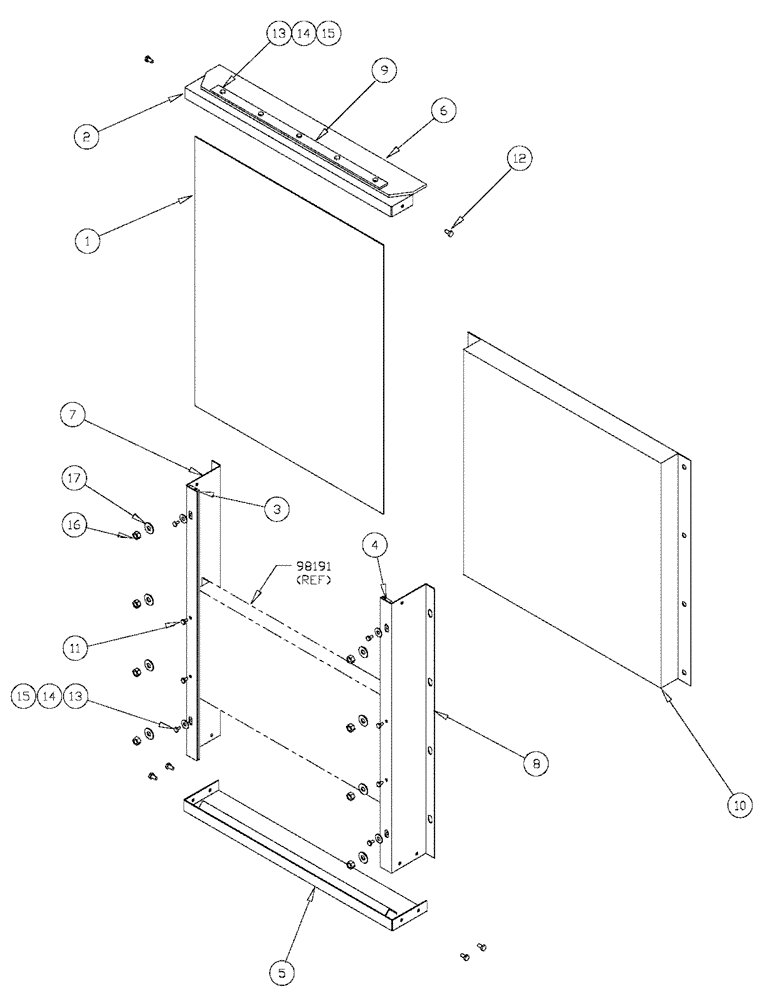

Запчасти Case IH SPX2130 (03-007) - OIL COOLER ASSEMBLY (01) - ENGINE

1

BN300666

Mesh-Radiator

1шт.

2

BN300648

Cover-Top

1шт.

3

BN300654

SUPPORT

Retainer-Radiator R.H.

1шт.

4

BN300653

SUPPORT

Retainer-Radiator L.H.

1шт.

5

300644

SNAP RING,M40, Internal

1шт.

Radiator Cover-Bottle

1шт.

6

BN300650

Radiator

1шт.

7

BN300218

Cooler R.H.

1шт.

8

300643

SNAP RING,M38, Int

1шт.

Mount LH

1шт.

9

BN300651

Radiator

1шт.

10

BN25998

Assembly-Cooler-Oil W/Hosebarbs

1шт.

11

BN300682

WASHER

#10 X .50 LG Hex HD

4шт.

12

BN300683

WASHER

#14 X .75 LG Hex HD

6шт.

13

BN50211

BOLT

1/4"-20 x .75, HH, G5

9шт.

14

BN50051

NUT,1/4"-20, USR

9шт.

15

BN50138

WASHER,1/4", SS

9шт.

16

BN50061

LOCK NUT

3/8"-16, G5, UNC, Whiz

16шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

ns

BN65195

PKG. Foam Kit Radiator

1шт.
