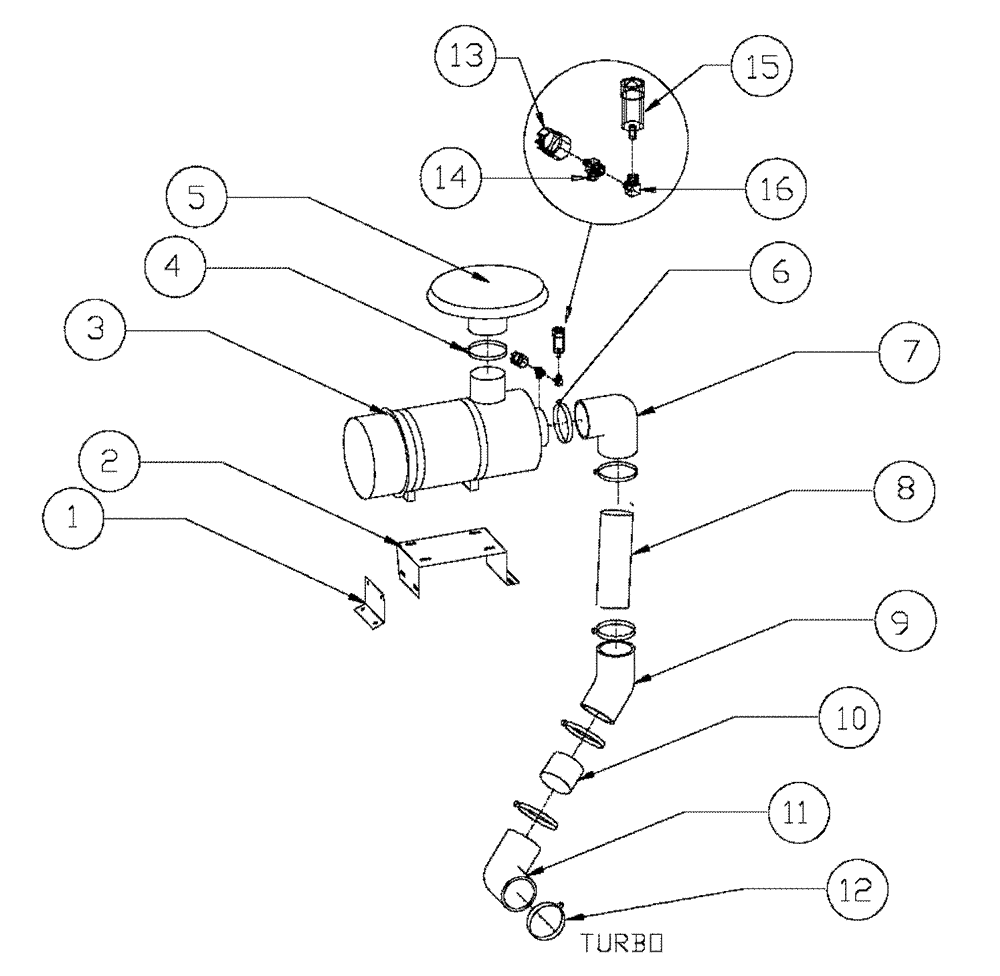

Запчасти Case IH SPX2130 (03-006) - AIR CLEANER ASSEMBLY (01) - ENGINE

1

BN24255

MOUNTING PLATE

12GA HRS 5 x 5.75

1шт.

2

BN24256

MOUNTING PLATE

12 GA HRS 7 x 20.75

1шт.

3

BN68873

AIR CLEANER

Air Cleaner (Complete)

1шт.

3a

BN69425

FILTER

Air (Primary)

1шт.

Parts Of Air Cleaner., P/N 68873

1шт.

3b

BN69426

FILTER

Filter Air (Secondary)

1шт.

Parts Of Air Cleaner., P/N 68873

1шт.

3c

BN25291

Mounting (For Air Cleaner)

2шт.

Associated Part Of Air Cleaner, P/N 68873

1шт.

4

BN51781

HOSE CLAMP

Clamp - #72

1шт.

5

BN25290

VENT

Rain Cap, Air Inlet 4.5"

1шт.

6

BN53823

SPECIAL CLAMP

"T" Bolt -4 1/2"

5шт.

7

D50920

ELBOW

4" x 90°

1шт.

8

BN68879

TUBE

4" DIA. X11"

1шт.

9

BN68876

ELBOW

4" X 45°

1шт.

10

BN25293

TUBE

4" od x 3" Long x 16 ga SS

1шт.

11

BN68875

ELBOW

Elbow Reducer 4:3 X 90°

1шт.

12

BN69543

CLAMP

T - 3 3/4"

1шт.

13

BN66126

INDICATOR

Filter, Electric

1шт.

14

BN68257

TEE

Tee 1/8 NPT Male-Female

1шт.

15

BN68258

INDICATOR

Restrict, 25" H2O

1шт.

16

BN21894

ELBOW

90º 1/8" Pipe

1шт.
