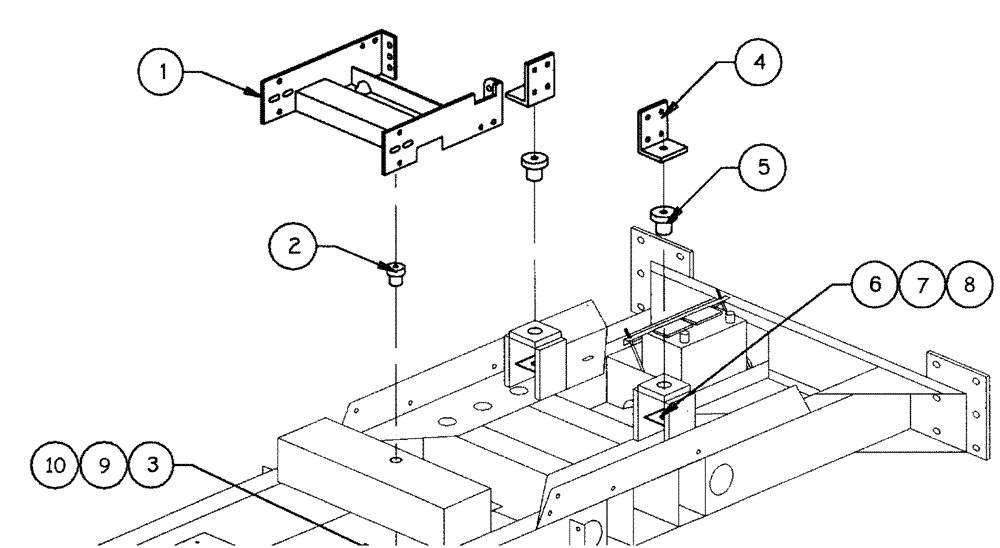

Запчасти Case IH SPX2130 (03-004) - ENGINE MOUNTS (01) - ENGINE

1

BN301730

Weldment - Motor, Radiator, See Fig 03-010

1шт.

2

BN29243

ISOLATOR

Rubber 1/2" Bore

1шт.

3

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

1шт.

4

NSS

NOT SOLD SEPARAT

Mount - Motor See Fig 03-001

2шт.

5

BN29242

ISOLATOR

Rubber 3/4" Bore

2шт.

6

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

2шт.

7

BN50839

BOLT

3/4-10 X 4, HH, G5

2шт.

8

BN50969

NUT

3/4-10, NLN, G5

2шт.

9

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

10

86992215

LOCK NUT,1/2"-13, GC

1шт.
