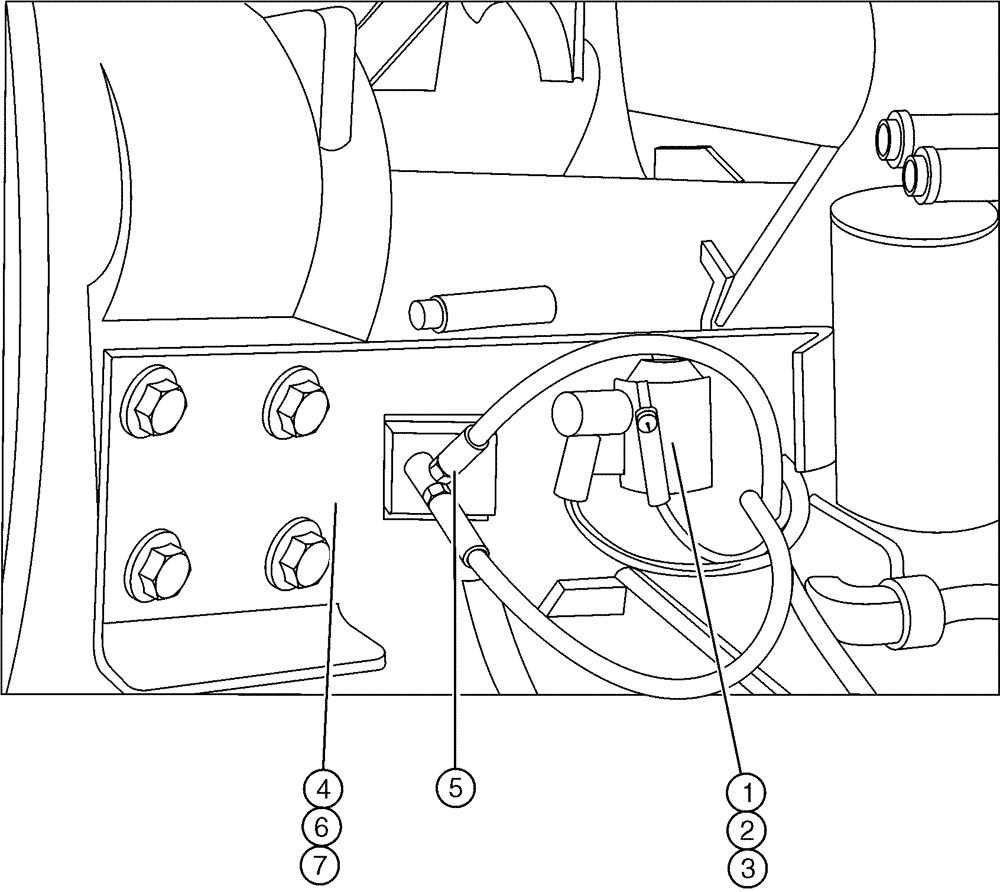

Запчасти Case IH SPX2130 (03-003) - STARTER RELAY & BRACKET ASSEMBLY (01) - ENGINE

1

BN29401

RELAY

Starter

1шт.

2

BN50051

NUT,1/4"-20, USR

4шт.

3

BN50209

BOLT

1/4"-20 x .5, HH, 5, PL

2шт.

4

BN69577

Solenoid

1шт.

5

BN69860

CIRCUIT BREAKER

150A

1шт.

5a

BN50050

NUT

Nut-10-32 Hex

2шт.

Associated Part Of Circuit Breaker, P/N 69860

1шт.

5b

BN50496

BOLT

10-32 X .5, RD, SL

2шт.

Associated Part Of Circuit Breaker, P/N 69860

1шт.

6

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

2шт.

7

BN50145

WASHER

3/8, FW, G5

2шт.

ns

BN313034

PROTECTIVE COVER

Shield-Solenoid & Relay

1шт.
