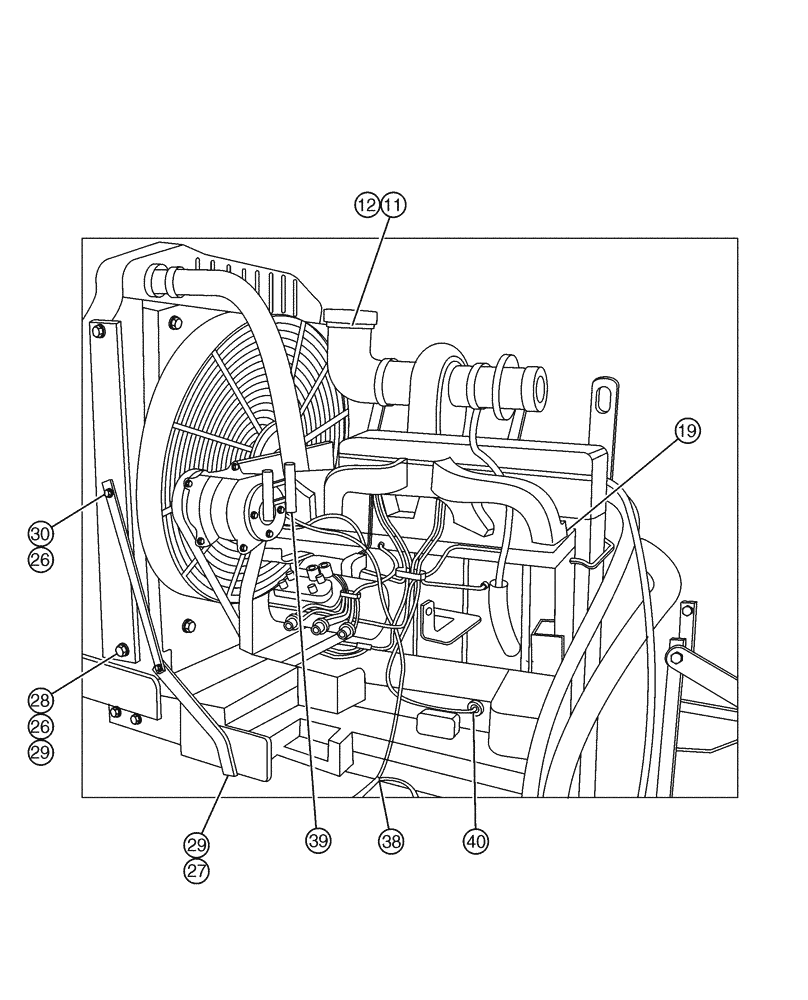

Запчасти Case IH SPX2130 (03-001[01]) - ENGINE ASSEMBLY W/RADIATOR & HYDROSTATIC PUMP (01) - ENGINE

1

BN24180

ANG. LH-3/16 1.25 X 1.25 X 15

1шт.

2

BN24181

ANG. RH-3/16 1.25 X 1.25 X 15

1шт.

3

BN25717

SUPPORT

Brace

2шт.

4

NSS

NOT SOLD SEPARAT

Cable-Control (216")

1шт.

Not Shown

1шт.

See Fig. 01-003

1шт.

5

NSS

NOT SOLD SEPARAT

Cable-Control (202")

1шт.

Not Shown

1шт.

See Fig. 01-003

1шт.

6

BN25725

ANGLE

3/16 1.5 x 1.5 x 13

1шт.

7

BN27454

Assembly - F & S Valve W/Fitting

1шт.

See Fig. 06-011

1шт.

8

BN29185

MOUNTING PLATE

7 ga 304 3/4" x 3"

1шт.

9

BN29188

MOUNTING PLATE

Shifter Cable

1шт.

10

BN29207

Angle-1/2" X 3.5 X 5.0 X 4

2шт.

11

BN29334

MUFFLER

Exhaust (W/Clamp)

1шт.

Not Shown

1шт.

12

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.

13

BN29950

LINKAGE

Assmbly, Shifter 770

1шт.

See Fig. 03-011

1шт.

13a

BN29949

ROD

3/8"-24 x 10.5"

1шт.

13b

BN40245

BALL JOINT

3/8-24 grommet

2шт.

13c

86509310

NUT,3/8" - 24, Gr 5

2шт.

14

BN300215

Radiator

1шт.

15

BN300679

HOSE,2.25" ID x 3.25"

1шт.

16

BN300685

Hex 8MM X 55MM X 1.25

2шт.

17

BN69012

Mount-Assembly-Radiator

1шт.

See Fig. 03-010

1шт.

18

BN69043

PKG. Radiator Cap Shroud Drain

1шт.

See Fig. 03-008

1шт.

19

BN301729

JDPT 4.5L-125HP

1шт.

See Fig. 03-002

1шт.

20

BN301885

PUMP

78452 RAZ.

1шт.

21

BN302283

Brace Assembly-HYD Pump

1шт.

22

BN310027

PLATE

& Coupling Assembly

1шт.

22a

BN309994

FLYWHEEL

Coupler Only

1шт.

Parts Of Plate/Coupling Assembly., P/N BN310027

1шт.

22b

BN98190

PLATE

Pump Mount-Flywheel

1шт.

Parts Of Plate/Coupling Assembly., P/N BN310027

1шт.

23

BN50061

LOCK NUT

3/8"-16, G5, UNC, Whiz

2шт.

24

86509310

NUT,3/8" - 24, Gr 5

4шт.

25

BN50072

NUT

Hex, 1/2"-13, G5

2шт.

26

BN50145

WASHER

3/8, FW, G5

3шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

28

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

13шт.

29

50286

BOLT Hex, 1/2"-13 x 1 3/4", G5

2шт.

30

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

31

86992215

LOCK NUT,1/2"-13, GC

2шт.

32

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

33

BN50995

LOCK NUT

3/8"-24 UNF, Centerloc

2шт.

34

BN53802

WASHER

Beveled, 1/2"

4шт.

35

BN53919

HOSE

1" X 15.25

2шт.

36

BN53920

HOSE

1" X 17.50

1шт.

37

BN53921

HOSE

1" X 17.05

1шт.

38

BN66110

WIRE HARNESS

Engine

1шт.

39

BN67309

SENDER UNIT

Oil Pressure 0-100

1шт.

40

BN67310

SENDER UNIT

Temperature 100-280 M14X 1.5

1шт.

41

BN68690

Assembly-Hydrostat W/Adapter

1шт.

See Fig. 06-010

1шт.

42

BN69043

Assembly-Start Relay & BR

1шт.

See Fig. 03-003

1шт.
