(04-011) - SIGHT GAUGE PACKAGE-660 GAL

Запчасти Case IH SPX2130 (04-011) - SIGHT GAUGE PACKAGE-660 GAL Suspension & Frame

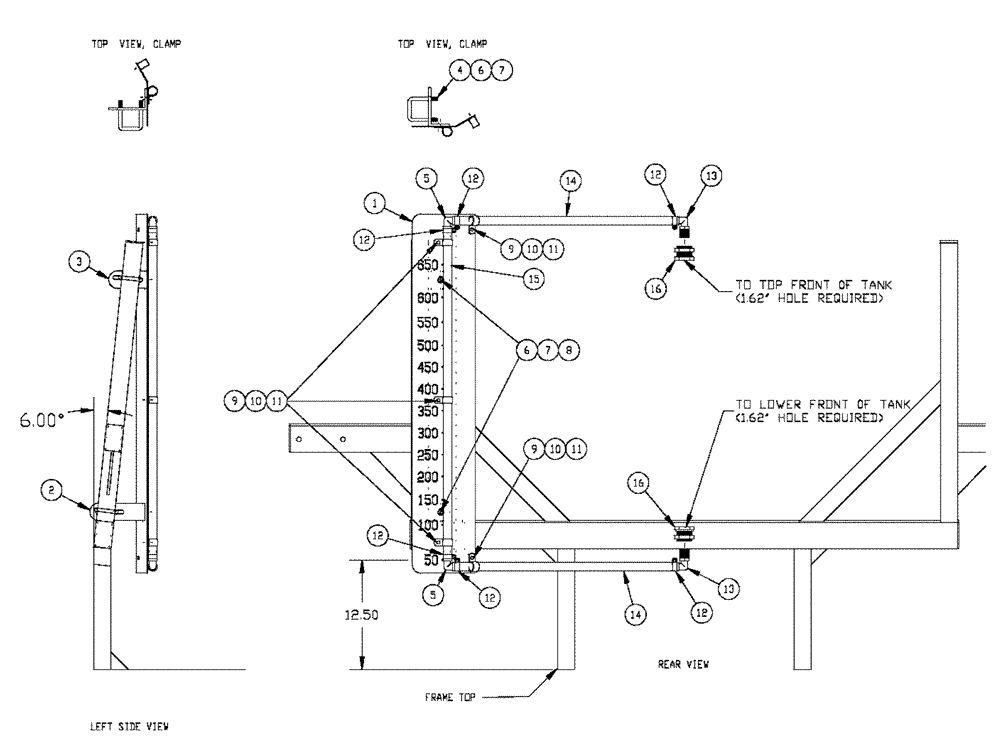

Схема запчастей Case IH SPX2130 - (04-011) - SIGHT GAUGE PACKAGE-660 GAL Suspension & Frame
13
16
12
16
12
12
8
6
7
12
5
3
14
2
10
11
14
9
5
10
13
6
12
11
9
4
15
7
9
1
12
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN314874

GAUGE

Sight (50/660 Gals)

1шт.

2

BN315015

BRACKET

(Bottom)

1шт.

3

BN315016

BRACKET

(Top)

1шт.

4

BN53731

U-BOLT

3/8" - square bend 2" ID

2шт.

5

BN73559

FITTING

Barb-3/4" 90 Degree H/Barb Pol

2шт.

6

BN50146

WASHER,3/8", Stainless

6шт.

7

BN50064

NUT

3/8"-16, Stainless Steel

6шт.

8

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

2шт.

9

BN50222

BOLT

5/16-18 X .75, TH, SS, PH

5шт.

10

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

5шт.

11

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

5шт.

12

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

6шт.

13

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

14

BN25255

Hose-Clear 3/4" ID X 30"

2шт.

15

68767

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5

1шт.

16

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.
