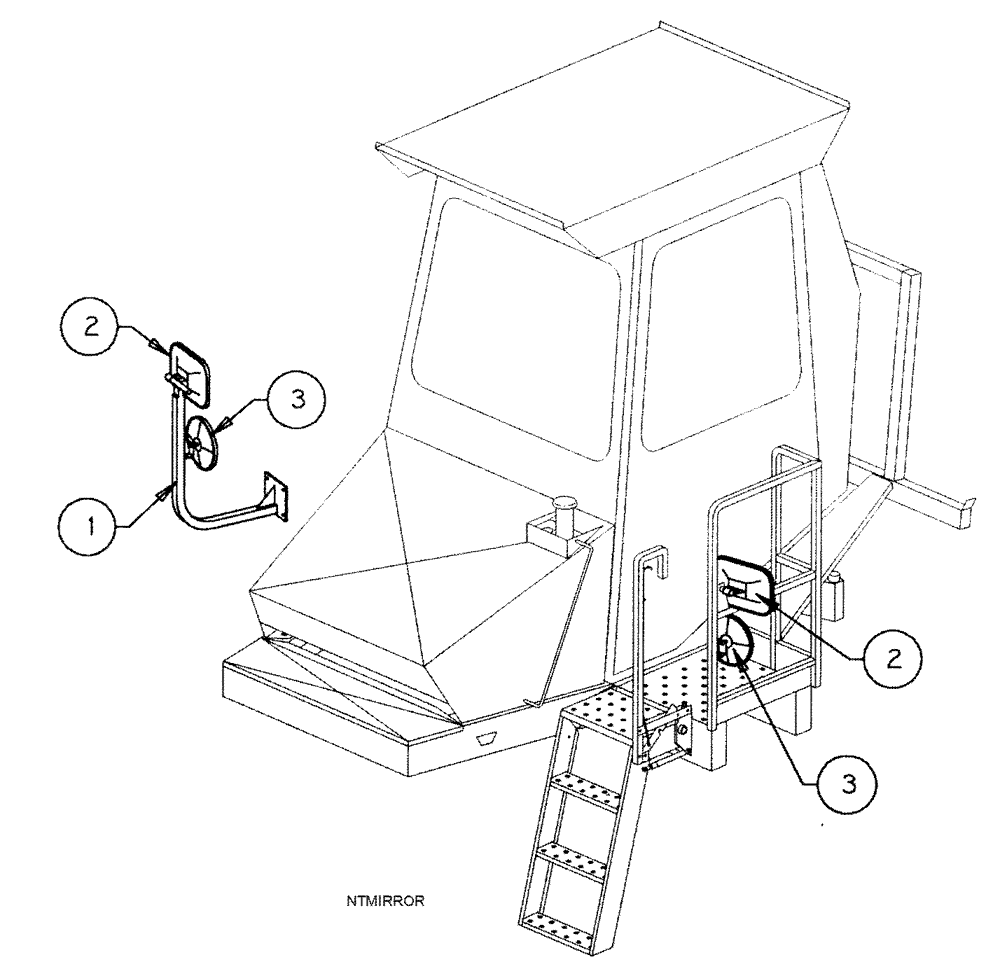

Запчасти Case IH SPX2130 (04-007) - MIRROR ASSEMBLIES Suspension & Frame

1

BN63859

HYD TUBE

1" DIA. 14GA x 21.5

1шт.

2

BN63851

MIRROR

Mirror-7.5 X 10.5

2шт.

2a

BN306477

CLAMP

Assembly, Mirror

2шт.

Associated Part Of Mirror, P/N 63851

1шт.

2b

BN306478

INSERT

5/8" Bore

1шт.

Associated Part Of Mirror, P/N 63851

1шт.

2c

BN306479

CLAMP

Two Halves-Poly

1шт.

Associated Part Of Mirror, P/N 63851

1шт.

2d

BN306480

PLATE

Top

2шт.

Associated Part Of Mirror, P/N 63851

1шт.

2e

BN50138

WASHER,1/4", SS

1шт.

Part Of Mirror., P/N "63851"

1шт.

2f

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

Associated Part Of Mirror, P/N 63851

1шт.

2g

280129

NUT,1/4"-20

2шт.

Associated Part Of Mirror, P/N 63851

1шт.

2h

BN55371

BOLT

1/4-20 X 2.5, HH, SS

1шт.

Associated Part Of Mirror, P/N 63851

1шт.

2j

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

1шт.

Associated Part Of Mirror, P/N 63851

1шт.

2k

BN306477

CLAMP

Assembly, Mirror

2шт.

Associated Part Of Mirror, P/N 63851

1шт.

3

BN63850

MIRROR

8"

2шт.
