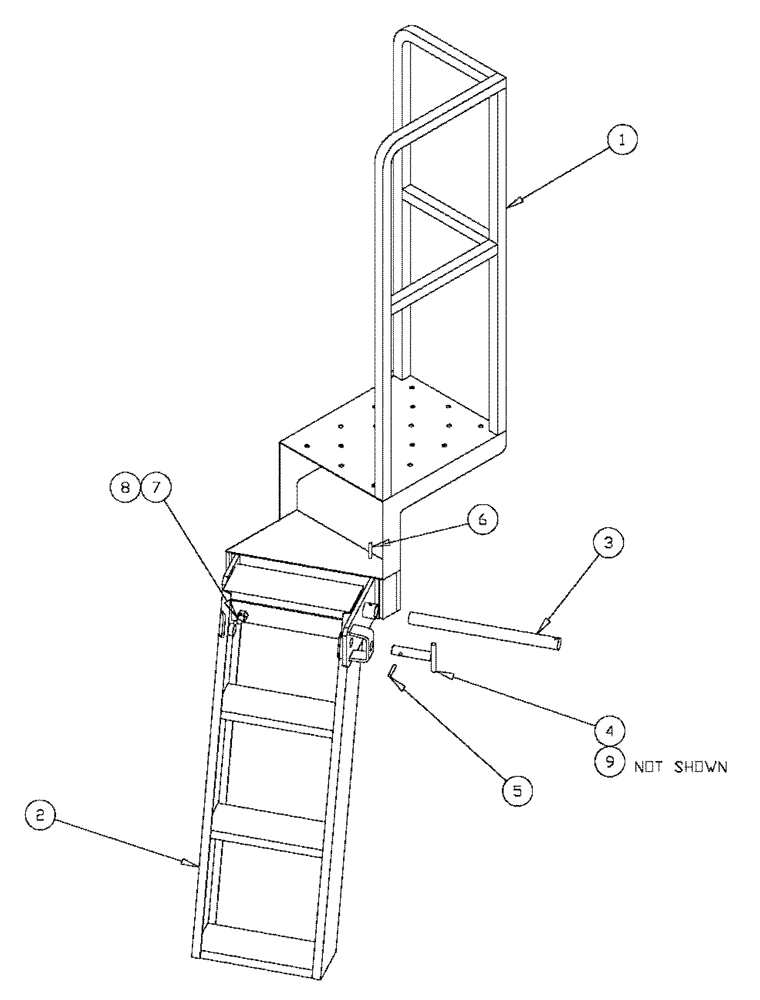

Запчасти Case IH SPX2130 (04-006) - REAR DECK & LADDER ASSEMBLY Suspension & Frame

1

BN300203

MOUNTING PLATE

LH Platform

1шт.

Shown

1шт.

1a

BN69812

PLATFORM

RH Platform

1шт.

Same Part Of LH Platform, P/N. BN300203 But Opposite Side

1шт.

2

BN25757

LADDER

Side 774

1шт.

3

BN24008

PIN

1" x 13"

1шт.

4

BN5412

Locking MW

1шт.

5

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

6

BN50605

PIN, ROLL

7/32 X 1 1/2

1шт.

7

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

8

86992215

LOCK NUT,1/2"-13, GC

4шт.

9

BN31937

SPRING

905 X .765 2

1шт.
