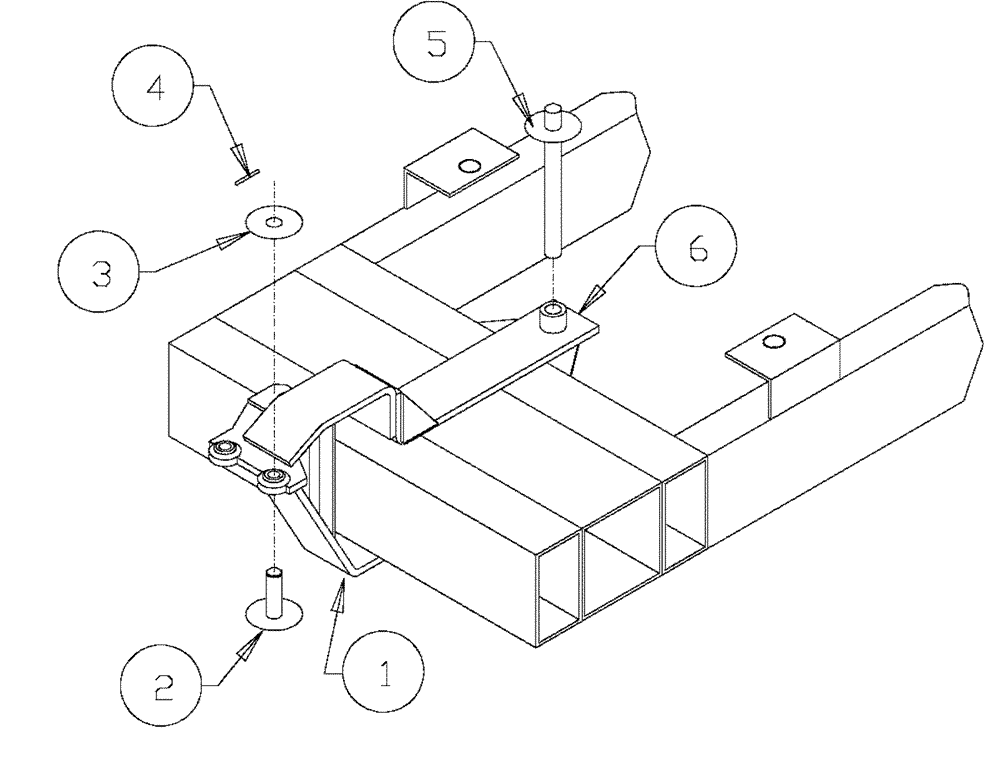

Запчасти Case IH SPX2130 (04-004) - STEERING ARM ASSEMBLY Suspension & Frame

1

BN25727

ARM

Steering - Lower

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

3

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

2шт.

4

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16" x 3/4", Type E

2шт.

5

BN65659

PIN

Pin, 1" DIA. X 10.88"

1шт.

6

BN25732

ARM

Steering - Upper

1шт.

ns

BN23597

PIN

Steering Cylinder (#53907)

1шт.
