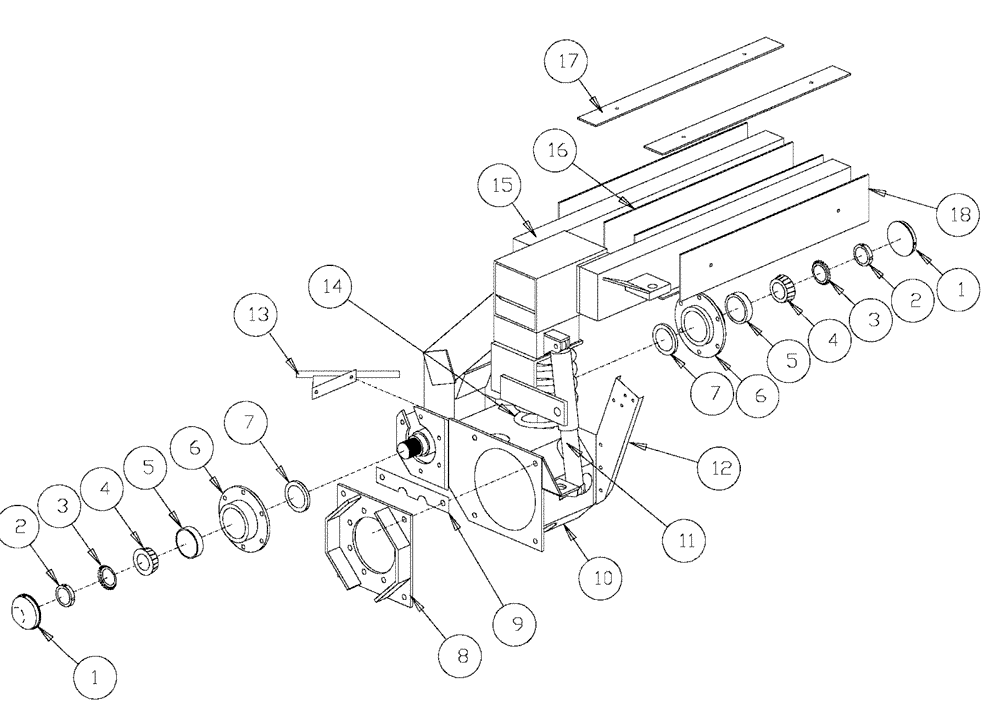

Запчасти Case IH SPX2130 (04-002) - AXLE & STRUT ASSEMBLY- REAR W/INTEGRAL BRAKES Suspension & Frame

1

BN80442

DUST CAP

2шт.

2

BN80443

LOCK NUT

2шт.

3

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

2шт.

4

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

2шт.

5

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

2шт.

6

BN29071

HUB

Assembly With Race and Seal

2шт.

Includes Refs. 5 & 7

1шт.

6a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer., P/N 29071

1шт.

7

BN306817

OIL SEAL

2шт.

8

BN66894

PLATE

2шт.

8a

BN50320

Bolt - 5/8" X 2 1/4" Gr. 8

8шт.

Associated Part Of Plate, P/N 66894

1шт.

8b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part Of Plate, P/N 66894

1шт.

8c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part Of Plate, P/N 66894

1шт.

9

BN29081

4шт.

10

BN66423

BRACKET

L.H.

1шт.

10a

BN66422

FRAME

R.H.

1шт.

Same Part Of Housing-L.H.., P/N. "66423" But Opposite Side

1шт.

Not Shown

1шт.

11

BN29316

SHOCK ABSORBER

10" Travel

1шт.

11a

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

11b

86992215

LOCK NUT,1/2"-13, GC

2шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

11c

BN50894

BOLT

1/2"-13 x 2.5, HH, 5

1шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

11d

BN53876

BOLT

1/2-13 X 2.5 - BSH

1шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

12

BN25273

SUPPORT

L.H.

1шт.

12a

BN25274

SUPPORT

R.H.

1шт.

Same Part Of Support-L.H., P/N. "25273" But Opposite Side

1шт.

Not Shown

1шт.

13

BN29690

DEFLECTOR

1шт.

14

BN309783

COIL SPRING

1.07" Wire x 7.37" od x 14.154" Long

1шт.

14a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

2шт.

Associated Part Of Spring-H.D., P/N 309783

1шт.

15

BN323935

STRUT

Rear LH

1шт.

15a

BN69361

STRUT

R.H.

1шт.

Same Part Of Strut-L.H., P/N. "69360" But Opposite Side

1шт.

Not Shown

1шт.

16

BN25740

L.H.

2шт.

17

BN25473

LINER

LH

4шт.

17a

BN25472

LINER

RH

2шт.

Same Part Of Liner-L.H., P/N. "25473" But Opposite Side

1шт.

Not Shown

1шт.

18

BN25472

LINER

RH

2шт.

18a

BN25617

LINER

RH

2шт.

Not Shown

1шт.
