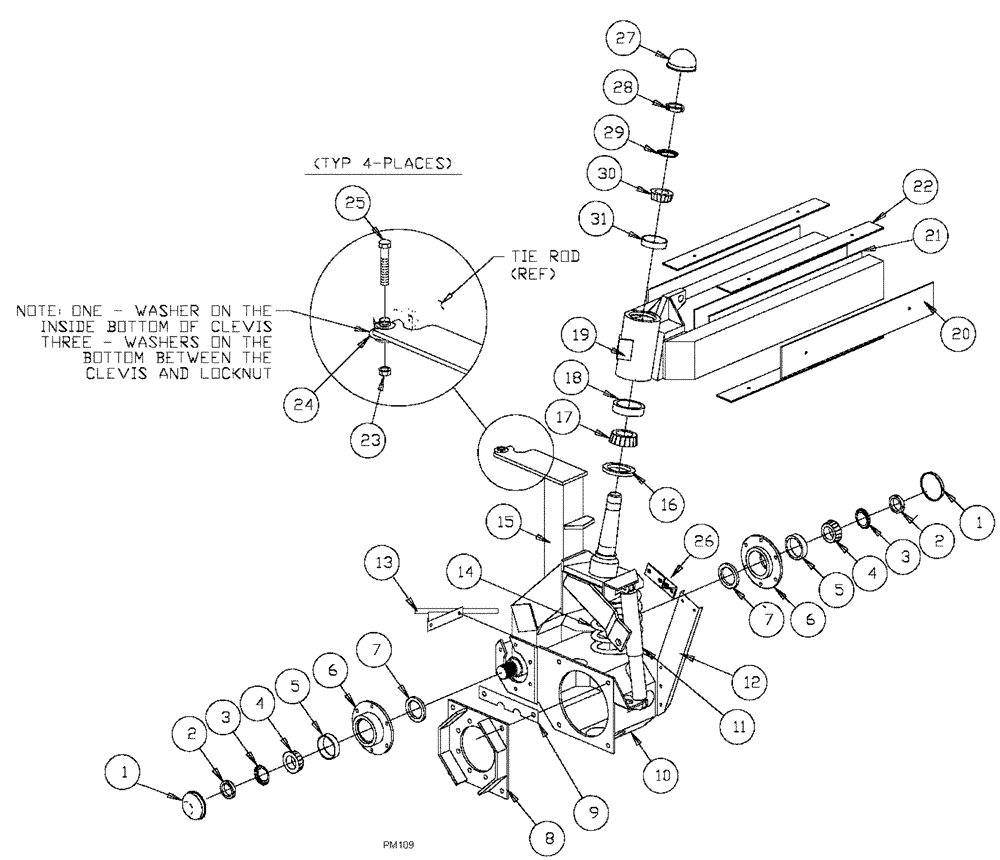

Запчасти Case IH SPX2130 (04-001) - AXLE & STRUT ASSEMBLY - FRONT Suspension & Frame

1

BN80442

DUST CAP

2шт.

2

BN80443

LOCK NUT

2шт.

3

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

2шт.

4

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

2шт.

5

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

2шт.

6

BN29071

HUB

Assembly With Race and Seal

2шт.

Includes Refs. 5 & 7

1шт.

6a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer, P/N 29071

1шт.

7

BN306817

OIL SEAL

2шт.

8

BN66894

PLATE

2шт.

8a

BN50320

Bolt - 5/8" X 2 1/4" GR. 8

8шт.

Associated Part Of Plate, P/N 66894

1шт.

8b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part Of Plate, P/N 66894

1шт.

8c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part Of Plate, P/N 66894

1шт.

9

BN29081

4шт.

10

BN66421

HOUSING

LH

1шт.

10a

BN66420

HOUSING

RH

1шт.

Same Part Of Housing-L.H., P/N. "66421" But Opposite Side

1шт.

Not Shown

1шт.

11

BN29316

SHOCK ABSORBER

10" Travel

1шт.

11a

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

11b

86992215

LOCK NUT,1/2"-13, GC

2шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

11c

BN50894

BOLT

1/2"-13 x 2.5, HH, 5

1шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

11d

BN53876

BOLT

1/2-13 X 2.5 - BSH

1шт.

Associated Part Of Shock Absorber, P/N 29316

1шт.

12

BN65585

SUPPORT

L.H.

1шт.

12a

BN65584

SUPPORT

R.H.

1шт.

Same Part Of Support-L.H., P/N. "65585" But Opposite Side

1шт.

Not Shown

1шт.

13

BN29690

DEFLECTOR

1шт.

14

BN309783

COIL SPRING

1.07" Wire x 7.37" od x 14.154" Long

1шт.

14a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

2шт.

Associated Part Of Spring-H.D., P/N 29911

1шт.

15

BN69016

STRUT

L.H.

1шт.

15a

BN323934

STRUT

Front RH

1шт.

Same Part Of Strut-L.H., P/N. "24261" But Opposite Side

1шт.

Not Shown

1шт.

16

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

1шт.

17

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

1шт.

18

BN89875

RACE

1шт.

19

BN69014

L.H.

1шт.

Includes Refs. 18 & 31

1шт.

19a

BN69013

AXLE

R.H.

1шт.

Same Part Of Axle - L.H, P/N. "89875" But Opposite Side

1шт.

Not Shown

1шт.

Includes Refs. 18 & 31

1шт.

20

BN25472

LINER

RH

1шт.

20a

BN25617

LINER

RH

1шт.

Not Shown

1шт.

21

BN25470

LINER

LH

1шт.

22

BN25473

LINER

LH

2шт.

22a

BN25472

LINER

RH

1шт.

Not Shown

1шт.

23

87344001

NUT

3/4"-16

2шт.

24

BN50178

WASHER

Machine - 3/4"

8шт.

25

87342968

BOLT

3/4"-16 x 4 1/2", G5

2шт.

26

BN63919

BRACKET

Hose Support

1шт.

27

BN89874

DUST CAP

(Bolt On)

1шт.

28

BN58124

BEARING LOCK NUT

1шт.

29

BN58125

LOCK WASHER

lock, series wh

1шт.

30

9672528

ROLLER BEARING,69.85mm ID

1шт.

31

BN52024

RACE

Race

1шт.
