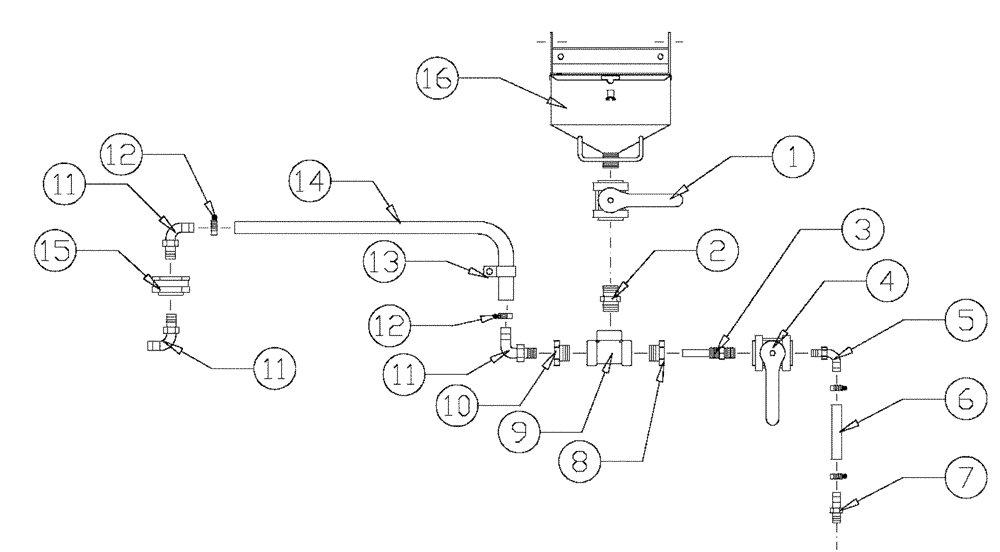

Запчасти Case IH SPX2130 (11-003) - CHEMICAL INDUCTOR Options

1

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

2

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

3

BN23475

VENTURI

1шт.

Chemical Inductor (Optional)

1шт.

4

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

5

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

6

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

7

BN73561

FITTING

Hose Barb - 3/4"

1шт.

8

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

9

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

10

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

1шт.

11

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

12

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

13

BN570018

CLAMP

1 7/16"

1шт.

14

BN53821

HOSE

1" X 100"

1шт.

15

BN73680

FITTING

bulkhead 1" poly

1шт.

16

BN24269

TANK

Chemical Inductor

1шт.

16a

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

Associated Part Of Chemical Inductor, P/N 24269

1шт.
