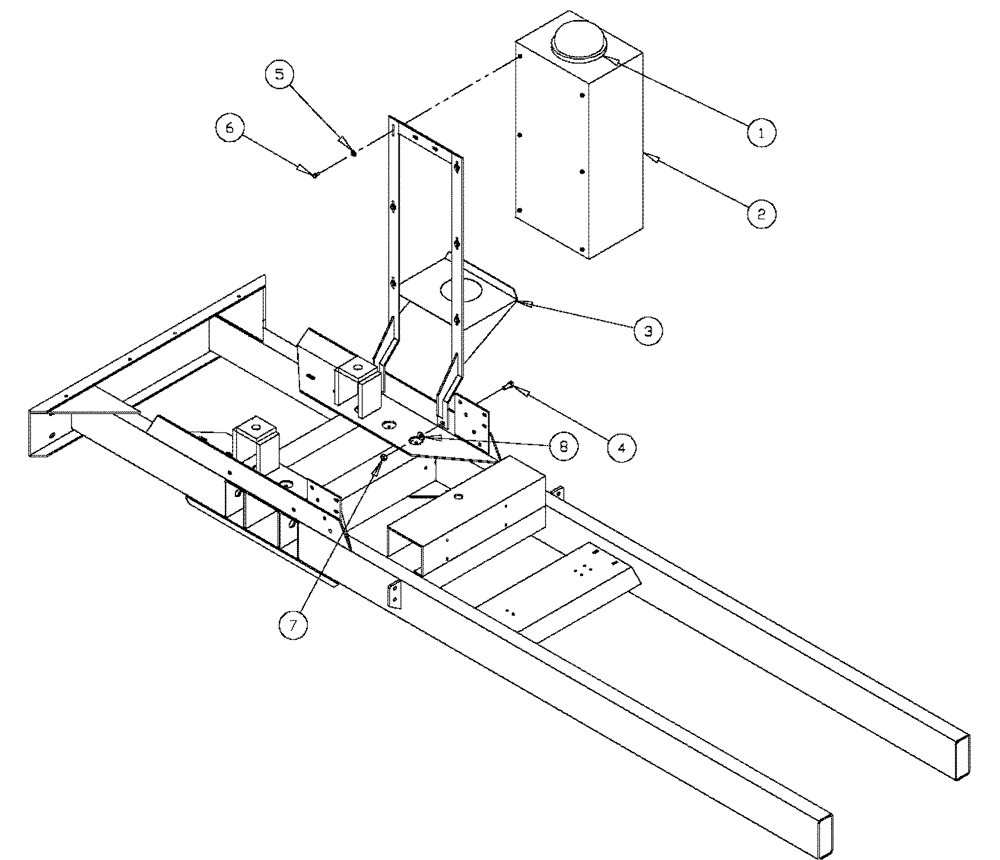

Запчасти Case IH SPX2130 (09-020) - RINSE & FOAM TANK Liquid Plumbing

1

BN24183

COVER

Rinse Tank (Ace)

1шт.

2

BN25723

TANK

20 Gallon

1шт.

3

BN300195

MOUNTING PLATE

20 Gallon Tank

1шт.

4

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

5

BN50141

WASHER

5/16 Flat Plated

6шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

7

86992215

LOCK NUT,1/2"-13, GC

2шт.

8

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

2шт.

8a

BN300198

1/2 X 1 1/4 FL Bar

1шт.

Not Shown

1шт.

8b

BN50061

LOCK NUT

3/8"-16, Whiz

4шт.

Not Shown

1шт.

8c

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

Not Shown

1шт.
