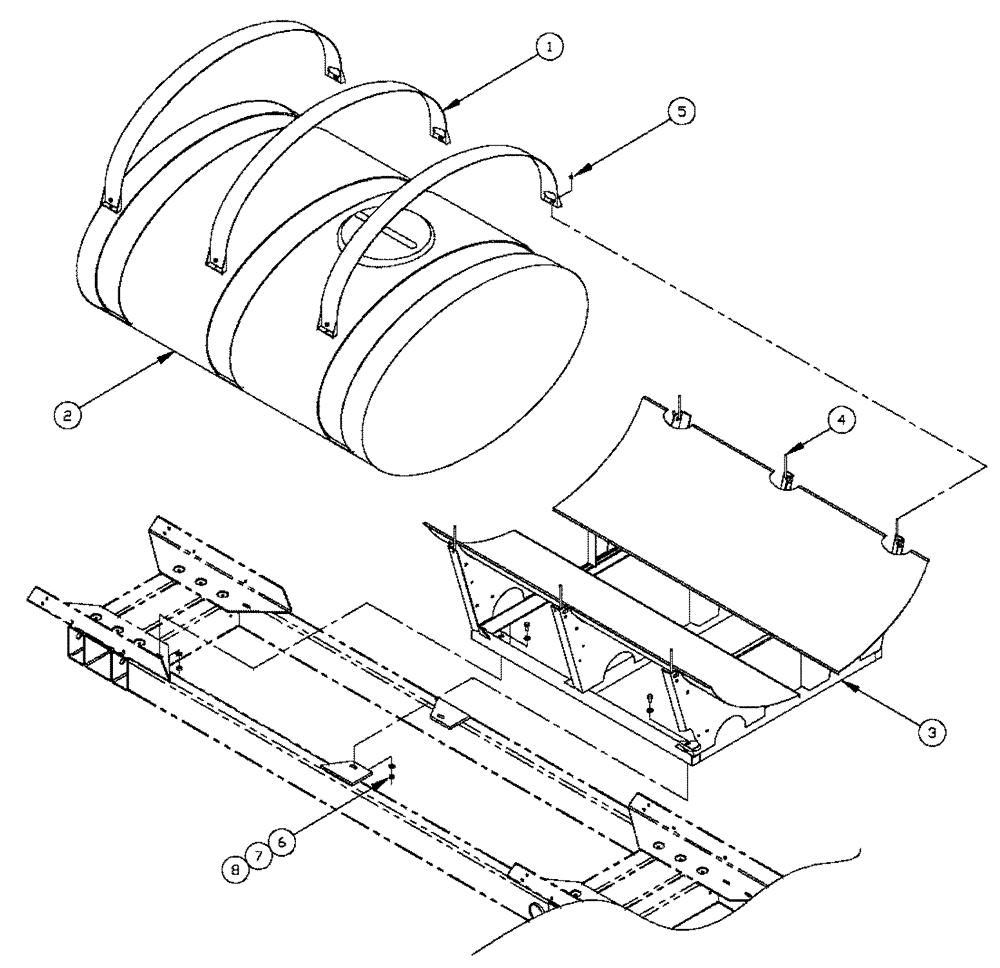

Запчасти Case IH SPX2130 (09-017) - TANK & SKID Liquid Plumbing

1

BN69405

STRAP

Tankband

3шт.

1a

BN24123

LINER

1/8" EPDM 4" X 78"

3шт.

Associated Part Of Tankband, P/N 69405

1шт.

2

BN314265

TANK

660 Gallon (Gray)

1шт.

2a

BN73784

FITTING

Bulkhead 2" Poly

1шт.

Associated Part Of 660 Gallon, P/N 314776

1шт.

2b

BN98288

COVER

10", For 500-750 Tank

1шт.

Associated Part Of 660 Gallon, P/N 314776

1шт.

3

BN68611

SKID PLATE

1шт.

3a

BN309547

LINER

1/8" EPDM 27" X 72"

2шт.

Associated Part Of Skid, P/N 68611

1шт.

4

BN50707

BOLT

J-3/8-16 UNC x 4.5"

3шт.

4a

BN305143

BOLT

J-3/8-16 UNC X 5" PL

3шт.

Associated Part Of J-Bolt, P/N 50707

1шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PL

6шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

8

86992215

LOCK NUT,1/2"-13, GC

4шт.
