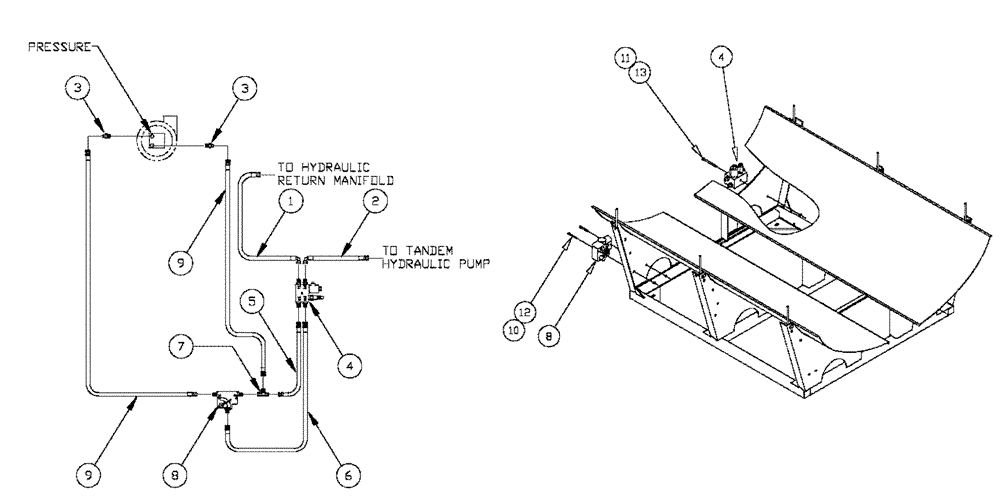

Запчасти Case IH SPX2130 (09-015) - HYDRAULIC COMPONENTS Liquid Plumbing

1

BN55150

HOSE

Assembly-1/2 X 73 100R2

1шт.

2

BN55149

Hose Assembly-1/2 X 36 100R2

1шт.

3

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

4

BN27552

Assembly-Manifold W/Adaptors

1шт.

5

BN55329

HOSE

Assembly-1/2 X 20 100R2

1шт.

6

BN55330

HOSE

Assembly-1/2 X 32 100R2

1шт.

7

BN53452

TEE

JIC-3/4-16, Male-Female

1шт.

8

BN65496

Assembly - Flow Regulator

1шт.

9

BN55165

Hose Assembly-1/2 X 77 100R2

2шт.

10

BN50534

BOLT

1/4-20 X 2.5, HH, G5

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

5/16-18 X 4, HH, SS

1шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN50056

LOCK NUT

5/16"-18, Whiz

1шт.
