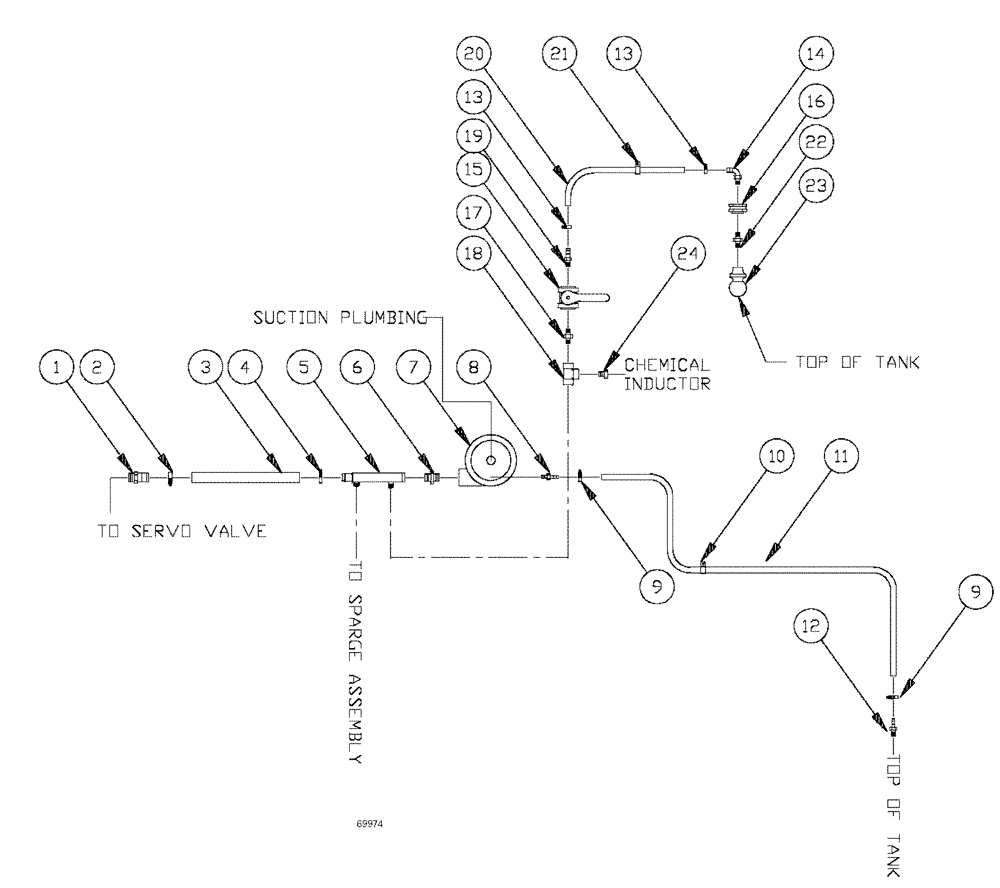

Запчасти Case IH SPX2130 (09-013) - PRESSURE COMPONENTS Liquid Plumbing

1

BN29891

FITTING

Hosebarb 1" NPT x 3", SS

1шт.

2

BN76084

HOSE CLAMP

Adj. #24, SS

1шт.

3

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

4

BN53810

HOSE CLAMP

1.75" ID "T" Bolt

1шт.

5

BN24157

MANIFOLD

Liquid Product 774

1шт.

6

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

7

BN302303

Hypro W/Hm1 Motor, See Fig 09-017

1шт.

8

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

9

BN76094

HOSE CLAMP

SS #M4

2шт.

10

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

11

BN53785

HOSE,74.00"

1шт.

12

BN53433

FITTING

HB, 1/4"NPT x 1/4" HS, STL

1шт.

13

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

2шт.

14

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

15

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

16

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

1шт.

17

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

18

BN73560

TEE

3/4" NPT, Poly

1шт.

19

BN73561

FITTING

Barb, 3/4 NPT X 3/4HS

1шт.

20

BN53765

HOSE,85.00"

1шт.

21

BN57232

CLAMP

Vinyl Coated 1" DIA.

1шт.

22

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" X 3/4" Poly

1шт.

23

29568

NOZZLE

Rinse 360 Degree

1шт.

24

BN73553

PLUG

3/4" NPT, Poly

1шт.
