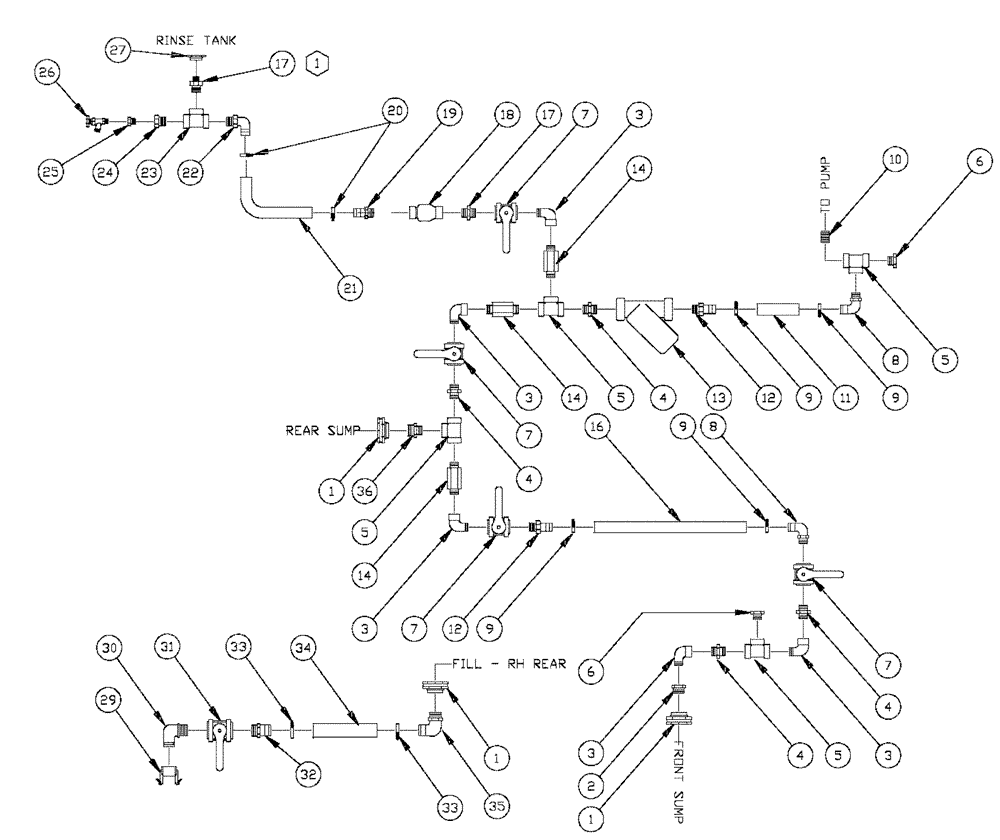

Запчасти Case IH SPX2130 (09-012) - SUCTION COMPONENTS Liquid Plumbing

1

BN73784

FITTING

Bulkhead 2" Poly

3шт.

2

BN73787

SLEEVE

Bush, Reducer 2-1.5 Poly

1шт.

3

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

5шт.

4

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

4шт.

5

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

4шт.

6

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

7

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

4шт.

8

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

9

BN76093

HOSE CLAMP

#28, SS

4шт.

10

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

11

BN53617

HOSE,1.50" ID x 10.00"

EPDM

1шт.

12

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

2шт.

13

BN73718A

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

Assembly 1.5-30 Mesh

1шт.

14

BN73732

LUBE NIPPLE

1.5" X 4" Poly

3шт.

15

BN73659

FITTING

NIPPLE 1 1/4 X Pipe Poly

1шт.

17

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

18

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

19

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

20

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

21

BN53886

1.25" EPDM X 64"

1шт.

22

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

23

BN73662

TEE

1-1/4", Poly

1шт.

24

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

25

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bush-3/4 X 1/2 Red. Poly

1шт.

26

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

27

BN73733

FITTING

1 1/2" Bulkhead

1шт.

28

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1-1/2" NPT X 1-1/4" NPT, Poly

1шт.

29

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

30

BN25262

ELBOW

90°, 2" NPT

1шт.

31

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

32

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

33

BN68379

HOSE

2" EPDM x 12"

2шт.

34

BN68379

HOSE

2" EPDM x 12"

1шт.

35

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

36

BN73780

NIPPLE

2" x 1.5 Red Poly

1шт.
