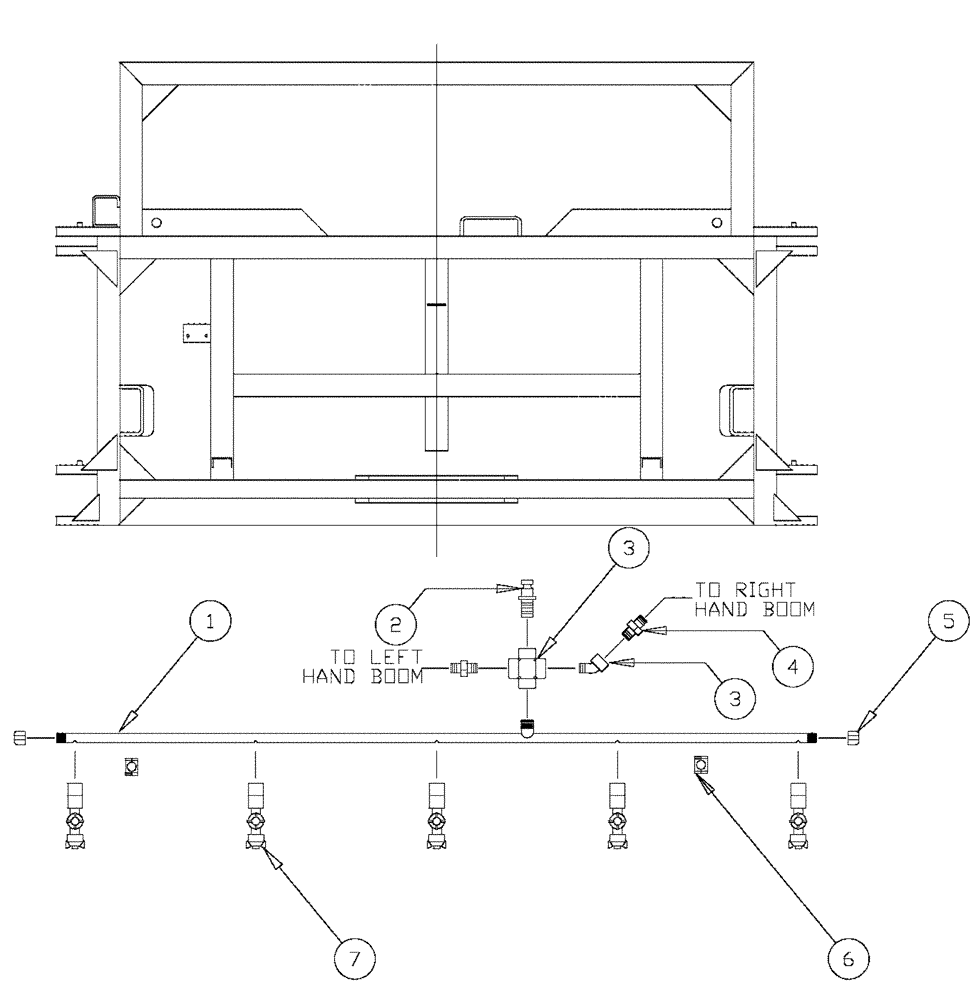

Запчасти Case IH SPX2130 (09-008) - 24M, 3 BOOM SHUT OFF , CENTER BOOM , 20" NOZZLE SPACING Liquid Plumbing

1

BN69756

BOOM

Wet 20" Spacing

1шт.

2

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

3

BN53663

COUPLING

1" NPT

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

5

BN73571

CAP

Poly-3/4" NPT

2шт.

6

BN65324

CLAMP

1" OD, Poly

2шт.

7

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

5шт.

7

BN65323

Body Assembly - Nozzle (3-Way) 3/4 Pipe

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.
