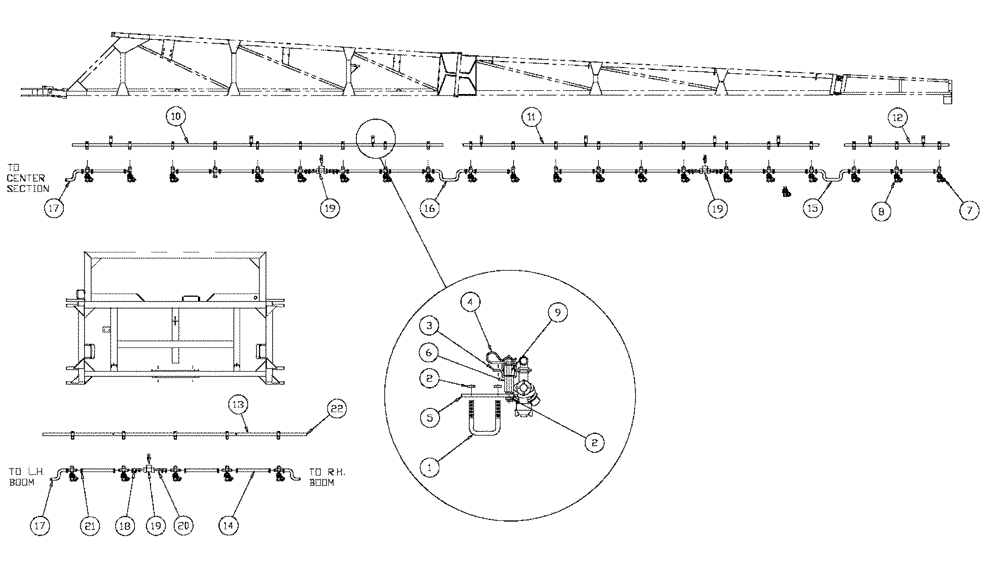

Запчасти Case IH SPX2130 (09-007) - 24M, 3 BOOM SHUT OFF, RH/LH BOOM 20" NOZZLE SPACING Liquid Plumbing

1

BN53731

U-BOLT

3/8" - square bend 2" ID

18шт.

2

BN50061

LOCK NUT

3/8"-16, G5, Whiz

72шт.

3

BN74448

CLAMP

1" square tubing

47шт.

4

BN71006

COTTER PIN

1/8", #11

18шт.

5

BN307641

MOUNTING PLATE

.25 X 1.25 X 5.00

18шт.

6

BN307710

SPACER

3/4 OD,.387 ID

18шт.

7

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

10шт.

7a

BN74618

1-Way Single 3/4" SHA

10шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

8

BN74621

NOZZLE

3-Way Double 3/4" SHA

37шт.

8a

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

30шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9

BN307921

PIN

3/8 DIA. x 3.75 LG

18шт.

10

BN307655

TUBE

1 X 1 X 12 Gasqx 174" LGHTB

2шт.

11

BN67275

TUBE

nozzle mount

2шт.

12

BN307656

TUBE

1 X 1 X 12GA SQ. Tube X 49" LG

2шт.

13

BN63497

TUBE

1 X 1 X 12GA x 102

1шт.

14

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

31шт.

15

BN53749

HOSE,0.75" ID x 36.00"

2шт.

16

BN53819

HOSE

EPDM, 3/4" ID x 66"

2шт.

17

BN53739

EPDM 3/4" ID X 42.0"

2шт.

18

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

10шт.

19

BN73629

TEE

1" Poly Pipe

5шт.

20

BN53666

FITTING

barb-1 NPT X 3/4 Hose

10шт.

21

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

94шт.

22

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

14шт.
