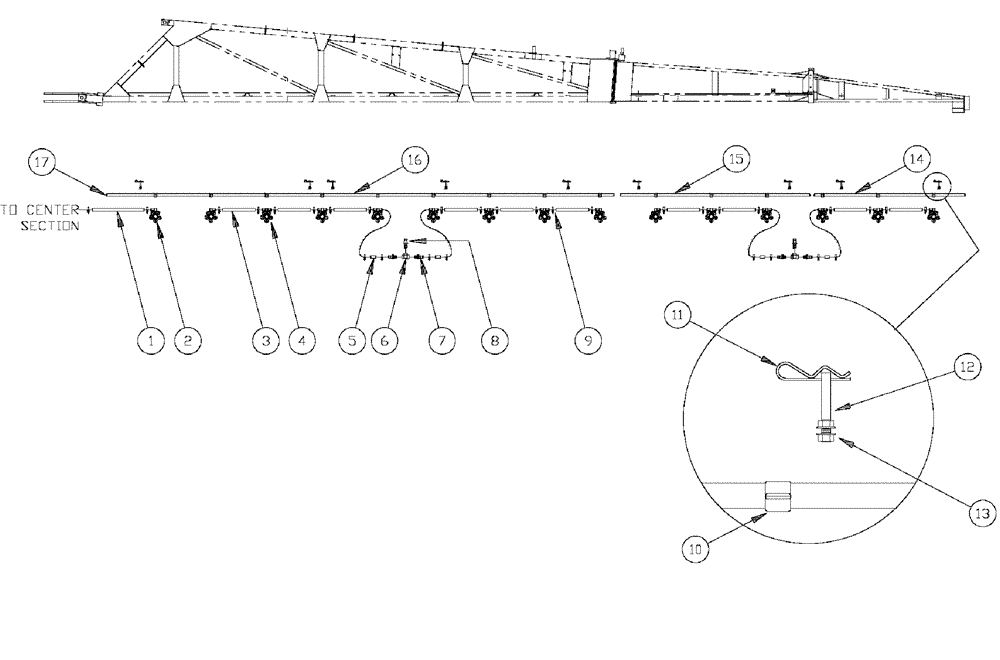

Запчасти Case IH SPX2130 (09-006) - 60, 5 BOOM SHUT OFF , RH/LH BOOM , 20" NOZZLE SPACING Liquid Plumbing

1

BN53748

HOSE,0.75" ID x 30.00"

EPDM

1шт.

2

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

2

BN74618

Single Hose Check Valve

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

10шт.

4

BN68699

NOZZLE

5 way double, 3/4" SHA

10шт.

4

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

10шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

5

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

6

BN73629

TEE

1" Poly Pipe

2шт.

7

BN53666

FITTING

barb-1 NPT X 3/4 Hose

4шт.

8

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

9

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

30шт.

10

BN74448

CLAMP

1" square tubing

15шт.

11

BN71006

COTTER PIN

1/8", #11

9шт.

12

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

9шт.

13

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

18шт.

14

BN63499

TUBE

1 X 1 X 12GA X 57.00

1шт.

15

BN24479

HYD TUBE

1 x 1 x 12 ga x 68"

1шт.

16

BN63498

ARM

1 X 1 X 12GA X 182.25

1шт.

17

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

6шт.
