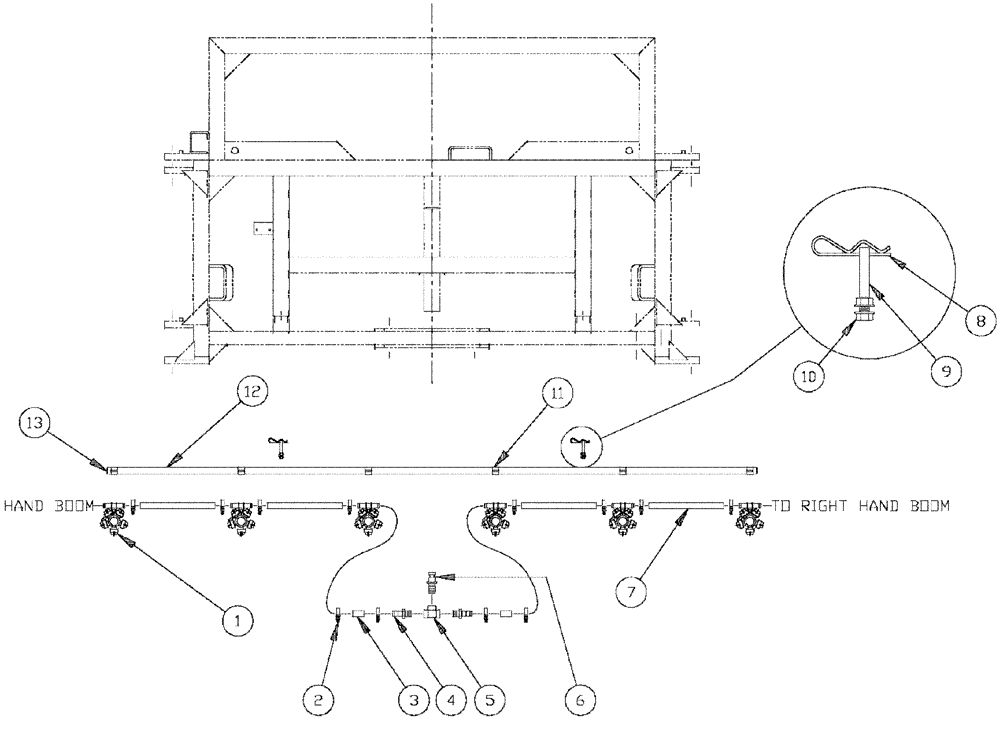

Запчасти Case IH SPX2130 (09-005) - 60, 5 BOOM SHUT OFF , CENTER BOOM, 20" NOZZLE SPACING Liquid Plumbing

1

BN68699

NOZZLE

5 way double, 3/4" SHA

6шт.

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

6шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

12шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

4

BN53666

FITTING

1 NPT X 3/4

2шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

4шт.

8

BN71006

COTTER PIN

1/8", #11

2шт.

9

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

10

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

11

BN74448

CLAMP

1" square tubing

6шт.

12

BN63497

TUBE

1 X 1 X 12GA X 102

1шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.
