(09-002) - 60, 5 BOOM SHUT OFF , LH RAVEN / MID- TECH

Запчасти Case IH SPX2130 (09-002) - 60, 5 BOOM SHUT OFF , LH RAVEN / MID- TECH Liquid Plumbing

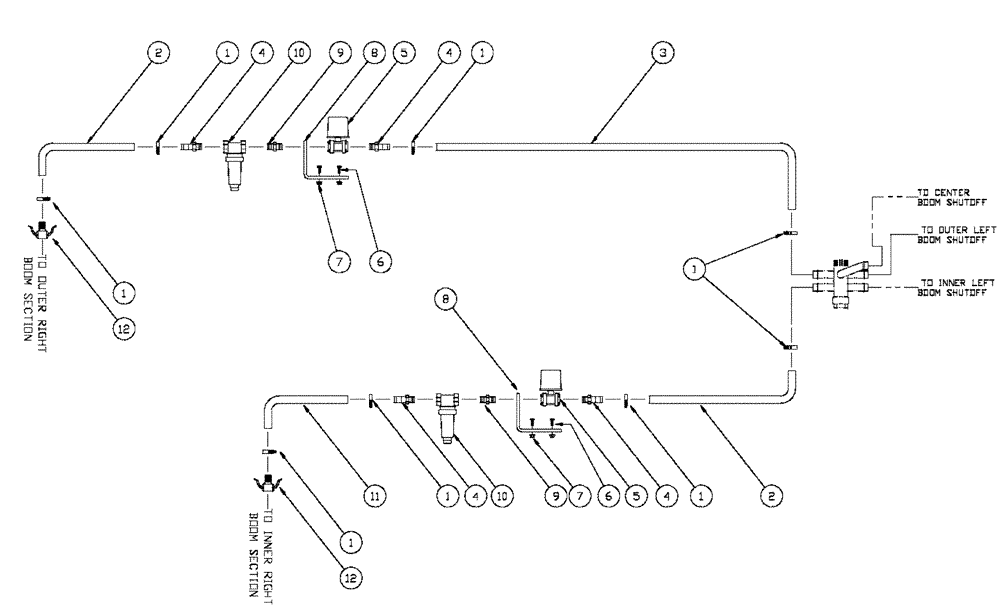

Схема запчастей Case IH SPX2130 - (09-002) - 60, 5 BOOM SHUT OFF , LH RAVEN / MID- TECH Liquid Plumbing
1
3
5
1
8
2
12
10
4
1
2
8
11
7
5
1
4
9
9
1
1
10
1
12
4
7
6
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

2

BN66869

1" EPDM X 116.0"

2шт.

3

BN53758

HOSE,222.00"

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

Barb, Poly 1" NPT X 1" HS

4шт.

5

87389559

VALVE

Electric, 1" Ball

2шт.

5a

BN53495

VALVE

PP-Ball (2-Way) Ele

2шт.

Parts Of Ball Valve Assembly., P/N "69620"

1шт.

6

BN50211

BOLT

1/4"-20 x .75, HH, G5

4шт.

7

BN50051

NUT,1/4"-20, USR

4шт.

8

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

9

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

10

BN73681

FILTER STRAINER

Assembly 1"-50 Mesh

2шт.

10a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN53781

1.5" EPDM X 20"

1шт.

12

BN53668

COUPLING

1" Female, HS SHK

2шт.
