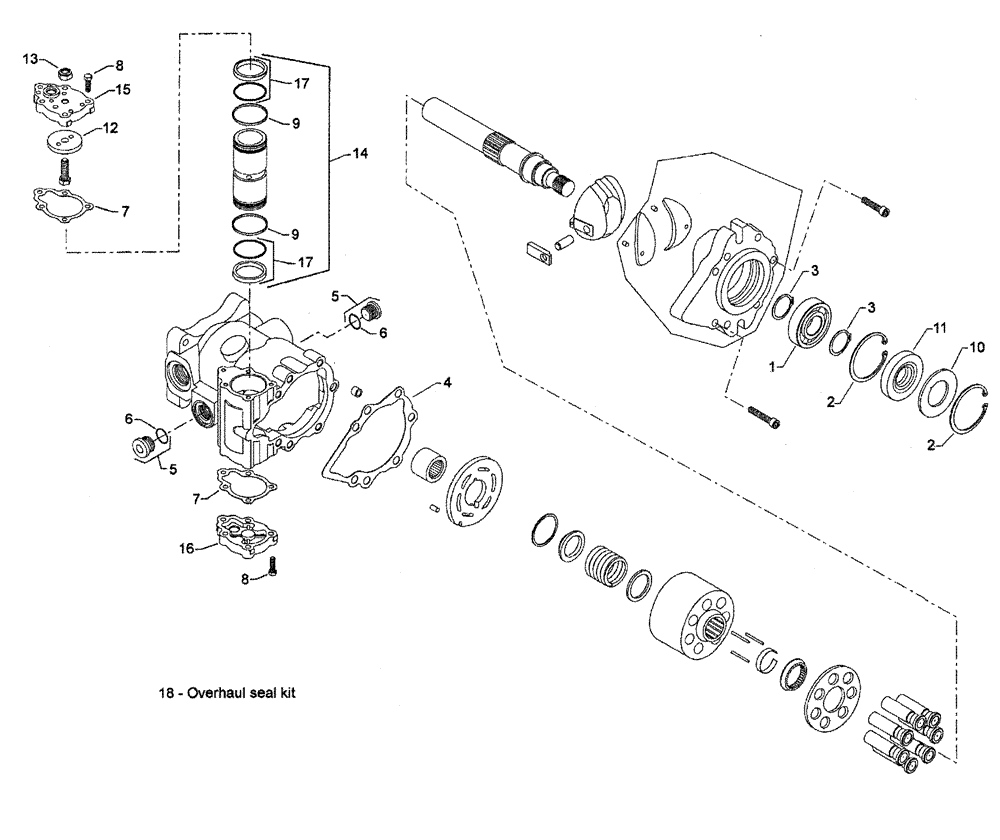

Запчасти Case IH SPX2130 (06-027) - WHEEL MOTOR Hydraulic Plumbing

0

BN54215

MOTOR

Wheel

1шт.

BN54215R

REMAN-HYD MOTOR

SPX2130, (9/99-5/04),

1шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87269463

BALL BEARING

1шт.

2

87268405

SNAP RING

2шт.

3

87269448

SNAP RING

2шт.

4

87269449

GASKET

1шт.

5

87269450

PLUG

2шт.

6

87269451

O-RING

2шт.

7

87269452

GASKET

2шт.

8

87269453

SCREW

10шт.

9

87269454

RING

Ring

2шт.

10

87269455

WASHER

WASHER

1шт.

11

BN98186

SEAL

lip, shaft

1шт.

12

87269456

STOP

1шт.

13

87269457

SEAL

Nut

1шт.

14

87269458

REPAIR KIT

Servo Piston

1шт.

15

87269459

COVER

Servo

1шт.

16

BN98605

COVER

SERVO-HYDROSTATIC

1шт.

17

87269460

PISTON RING

& Piston Ring

2шт.

18

87012461

SEAL KIT

Overhaul

1шт.

ns

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

BETWEEN WHEEL MOTOR & HUB

1шт.
