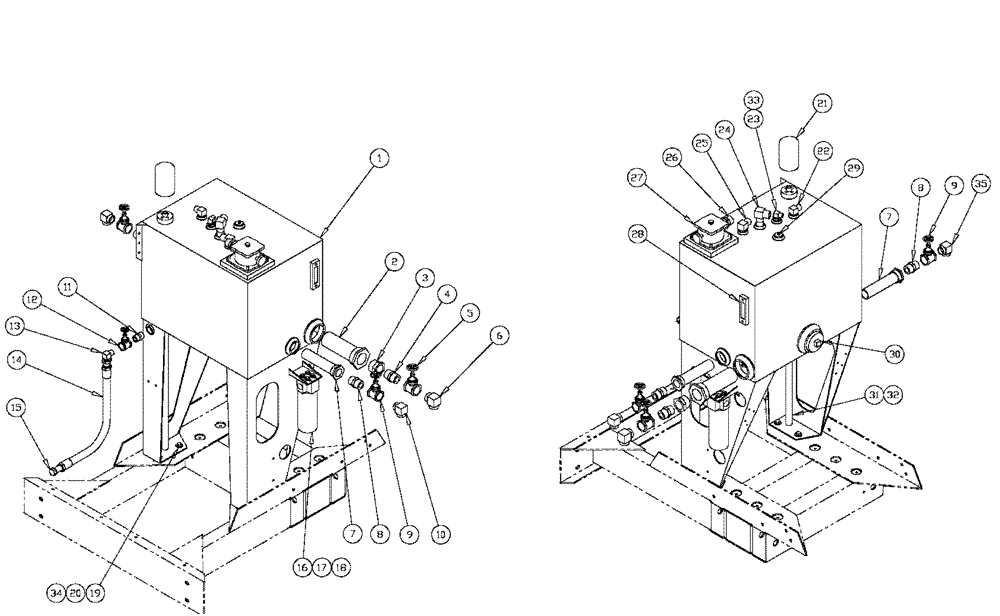

Запчасти Case IH SPX2130 (06-015) - HYDRAULIC TANK ASSY W/PLUMBING Hydraulic Plumbing

0

BN302358

Hydraulic Tank Assembly, w/Plumbing

1шт.

1

BN300675

TANK

Hydraulic Oil

1шт.

2

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

1шт.

3

BN72471

BUSHING

2NPTF x 1.5 NPTF BI

1шт.

4

BN52034

FT, NP, 1.5" X 1.5" NPT Male

1шт.

5

BN51497

HYDRAULIC VALVE

Gate - 1 & 1/2 NPT

1шт.

6

BN52036

FITTING

Adapter, 90 Degree PI 37 Flare

1шт.

7

BN24148

FILTER STRAINER

25 gpm, 100 Mesh

2шт.

8

BN51952

COUPLING

male, 1-1/4"

2шт.

9

BN2006

Valve - Gate 1 & 1/4" NPT

2шт.

10

BN52318

ADAPTER

FT, Adapter, 90 Degree PI 37 Flare

1шт.

11

BN51656

ADAPTER

FT, STR, 1 NPTF, Male

1шт.

12

BN21372

VALVE

Gate, 1" NPT

1шт.

13

BN53809

ELBOW

Adapter, 90°, 1" NPT x 1/16" JIC

1шт.

14

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

1шт.

15

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

16

BN27458

FILTER

Assembly HYD. W/Fitting

1шт.

16a

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

Service Parts For Ref. 16

1шт.

16b

N14232

FILTER

Element, Spin On

1шт.

Service Parts For Ref. 16

1шт.

16c

BN58122

HEAD

Assembly

1шт.

Service Parts For Ref. 16

1шт.

16d

BN54258

SENDER UNIT

Electrical

1шт.

Service Parts For Ref. 16

1шт.

16e

BN98626

INDICATOR

Gauge-Assembly (Filter #29338A)

1шт.

Service Parts For Ref. 16

1шт.

17

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

4шт.

18

BN300175

WASHER

3/8", G8

8шт.

19

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

20

BN300176

WASHER

Flat, 1/2, G8

4шт.

21

BN53958

BREATHER

Spin On, Breather

1шт.

22

BN303551

ADAPTER

90, 3/4 NPT X -6 JIC

1шт.

23

BN442022

90 Pipe-37 Flare 04-04

1шт.

24

BN67881

ADAPTER

90º 1" NPT x #16 JIC

1шт.

25

BN442004

FITTING

90 Degree Pipe 37 Flare

1шт.

26

BN55352

ADAPTER

ORX JIC 20-16

1шт.

27

BN53952

FILTER

Intank Complete

1шт.

27a

BN53953

FILTER

Element For #53952

1шт.

Service Parts For Ref. 27

1шт.

27b

BN53954

GAUGE

Pressure For 53952

1шт.

Service Parts For Ref. 27

1шт.

27c

BN53955

PRESSURE SWITCH

For 53952

1шт.

Service Parts For Ref. 27

1шт.

27d

BN54263

O-RING

Insert

1шт.

Service Parts For Ref. 27

1шт.

27e

BN54264

GASKET

Tank

1шт.

Service Parts For Ref. 27

1шт.

28

BN53957

GAUGE

Sight W/Temperature

1шт.

29

BN52325

PLUG

1-1/4 Hex, STL

1шт.

29a

BN65198

SWITCH

Level Assembly (AWS)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

29b

BN53956

SWITCH

Float Level-HYD. Tank

1шт.

Service Parts For Ref. 29

1шт.

30

BN72541

Plug- 4.00" Steel SQ. Head

1шт.

31

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

32

BN54257

1.0" ID x 30.00" Vinyl

1шт.

33

BN51250

FITTING

RDC, STL PI, 3/4 X 1/4

1шт.

34

BN55335

NUT

1/2-13 UNC Whiz Lock

4шт.

35

BN303563

ADAPTER

90, 11/4NPTx-16 JIC

1шт.

ns

BN53951

THERMOSTATIC SWITCH

N.C.180 Degree

1шт.

ns

BN16238

WIRE HARNESS

Assembly,W/Loom-HYD.Warning

1шт.

ns

BN52319

PLUG

1/2" NPT Magnetic STL

1шт.
