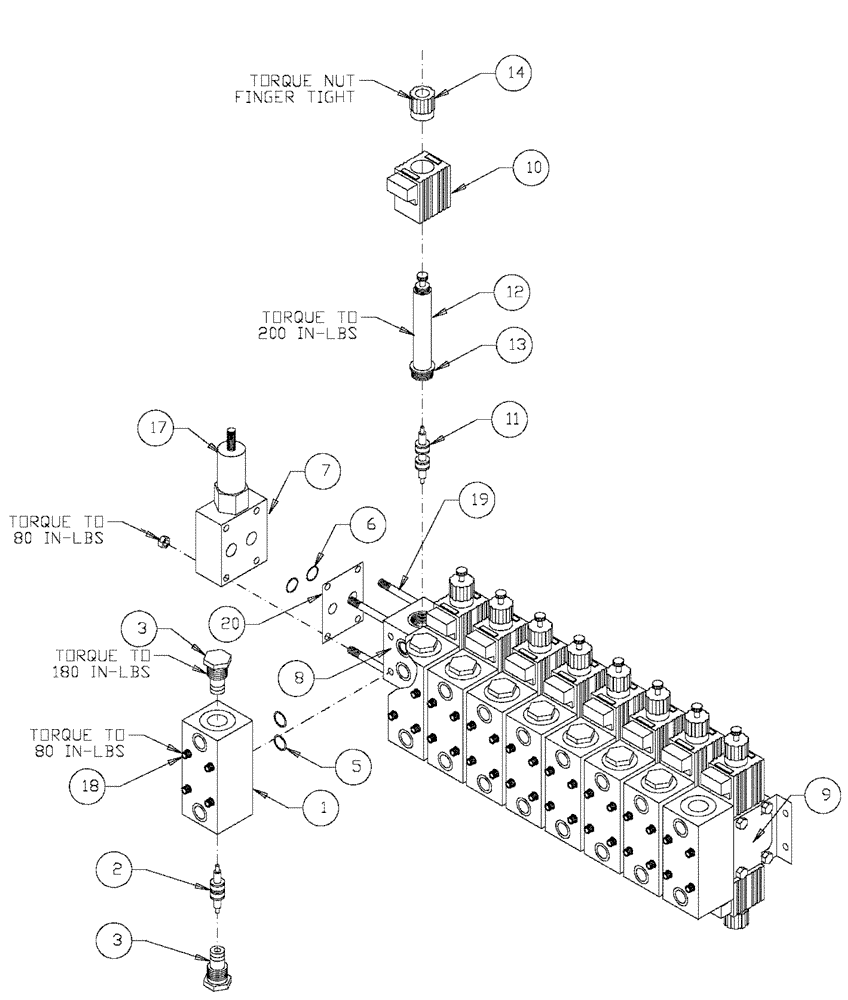

Запчасти Case IH SPX2130 (06-014) - VALVE 9 - BANK DIRECTIONAL Hydraulic Plumbing

1

BN98677

BLOCK

Check (Dual)

9шт.

2

BN98679

CHECK VALVE

Piston, Dual, 29345

9шт.

3

BN98227

VALVE

Check, 30 PSI Waterman

18шт.

3a

BN98219

SEAL KIT

For #98227

18шт.

Service Parts For Ref. 1

1шт.

5

BN98225

O-RING

Stacking Valve #29345

20шт.

6

BN98226

O-RING

Sandwich Valve #29345

20шт.

7

BN309667

Inlet Cover

1шт.

8

BN98325

BLOCK

Centers

8шт.

9

BN98324

BLOCK

End

1шт.

10

BN98222

COIL

W/Wire Leads & Packard Ends

18шт.

11

BN98220

SPOOL

9шт.

12

BN98221

TUBE

Incl. Ref. 13

18шт.

13

BN98224

O-RING

Tube Assy #98221

18шт.

14

BN98223

NUT

18шт.

17

BN309669

Flow Control-Waterman

1шт.

18

BN50799

SCREW,1/4" - 20 x 2 1/4", Stainless

Bolt - 1/4" NC X 2 1/4" Allen HD Cap

36шт.

18a

BN50139

WASHER

1/4" spring lock

36шт.

Associated Part Of Bolt, P/N 50799

1шт.

19

BN309668

Tie Rod

4шт.

19a

280129

NUT,1/4"-20

4шт.

Associated Part Of Tie Rod Kit, P/N 309668

1шт.

20

86986508

PLATE

Backing, Anodized

9шт.
