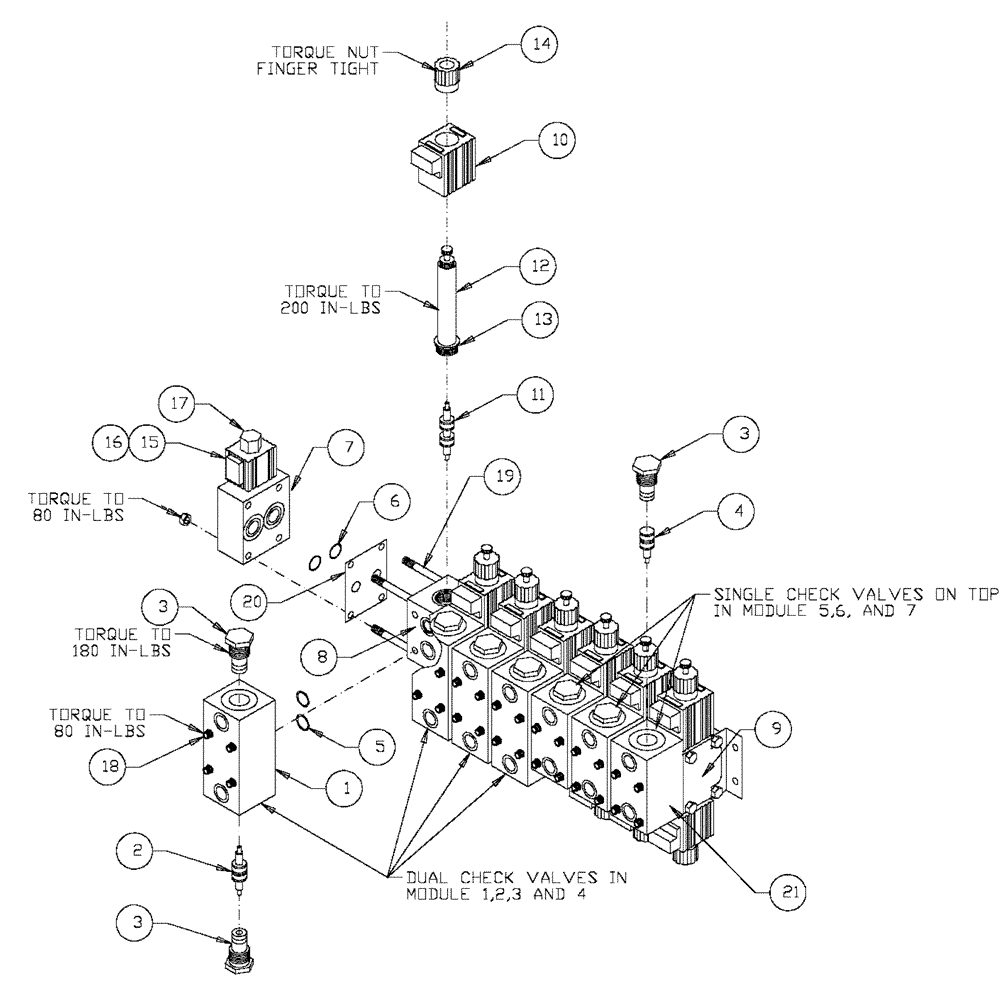

Запчасти Case IH SPX2130 (06-013) - VALVE 7 - BANK DIRECTIONAL Hydraulic Plumbing

1

BN98677

BLOCK

Check (Dual)

4шт.

2

BN98679

CHECK VALVE

Piston, Dual, 29345

4шт.

3

BN98227

VALVE

Check, 30 PSI Waterman, Top & Bottom on Dual Check Module #1, 2, 3, 4. (Top only on single check module #5, 6, 7)

11шт.

3a

BN98219

SEAL KIT

For #98227

11шт.

Service Parts For Ref. 3

1шт.

4

BN98680

PISTON

(For Single Check)

3шт.

5

BN98225

O-RING

Stacking Valve #29345

14шт.

6

BN98226

O-RING

Sandwich Valve #29345

14шт.

7

BN98336

HYDRAULIC VALVE

Block- Unloader

1шт.

Includes Refs. 15, 16, & 17

1шт.

8

BN98325

BLOCK

Centers

6шт.

9

BN98324

BLOCK

End

1шт.

10

BN98222

COIL

W/Wire Leads & Packard Ends

14шт.

11

BN98220

SPOOL

7шт.

12

BN98221

TUBE

Assy

14шт.

Includes Ref. 13

1шт.

13

BN98224

O-RING

Tube Assy #98221

14шт.

14

BN98223

NUT

14шт.

15

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

1шт.

16

BN98217

CARTRIDGE

(Unloader Valve)

1шт.

16a

BN98219

SEAL KIT

For #98217

1шт.

Service Parts For Ref. 16

1шт.

17

BN98218

NUT

1шт.

18

BN50799

SCREW,1/4" - 20 x 2 1/4", Stainless

Bolt - 1/4" NC X 2 1/4" Allen HD Capscrew

28шт.

18a

BN50139

WASHER

1/4" spring lock

28шт.

Associated Part Of Bolt, P/N 50799

1шт.

19

BN24141

THREADED TIE-ROD

1/4"-20 x 15-3/4"

4шт.

Shown

1шт.

7 Bank

1шт.

19

280129

NUT,1/4"-20

4шт.

Associated Part Of Threaded Rod, P/N 24141

1шт.

20

86986508

PLATE

Backing, Anodized

7шт.

21

BN98678

BLOCK

Check Valve (Single)

3шт.

21a

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

Associated Part Of Check Valve Block, P/N 98678

1шт.

21b

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

Associated Part Of Check Valve Block, P/N 98678

1шт.
