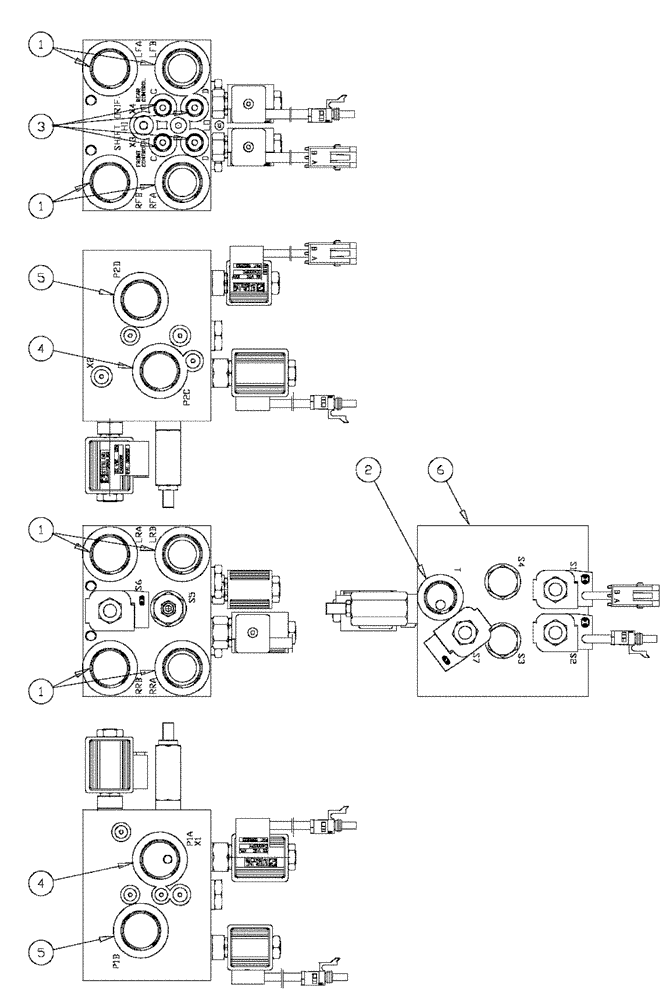

Запчасти Case IH SPX2130 (06-011) - SHIFT BLOCK WITH FITTINGS ASSEMBLY Hydraulic Plumbing

1

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

2

BN444003

FITTING

Adapter-O Ring 37 Flare 12-08

1шт.

3

BN51589

FITTING

Adapter, STR, 37 Fare x 9/16 OR

4шт.

4

BN53918

ADAPTER

flat face x Or x 4.1

2шт.

5

BN57223

FITTING

16MOR-16MB

2шт.

6

NSS

NOT SOLD SEPARAT

Valve, Flush-Shift-ORF LOC

1шт.

See Fig. 06-008

1шт.
