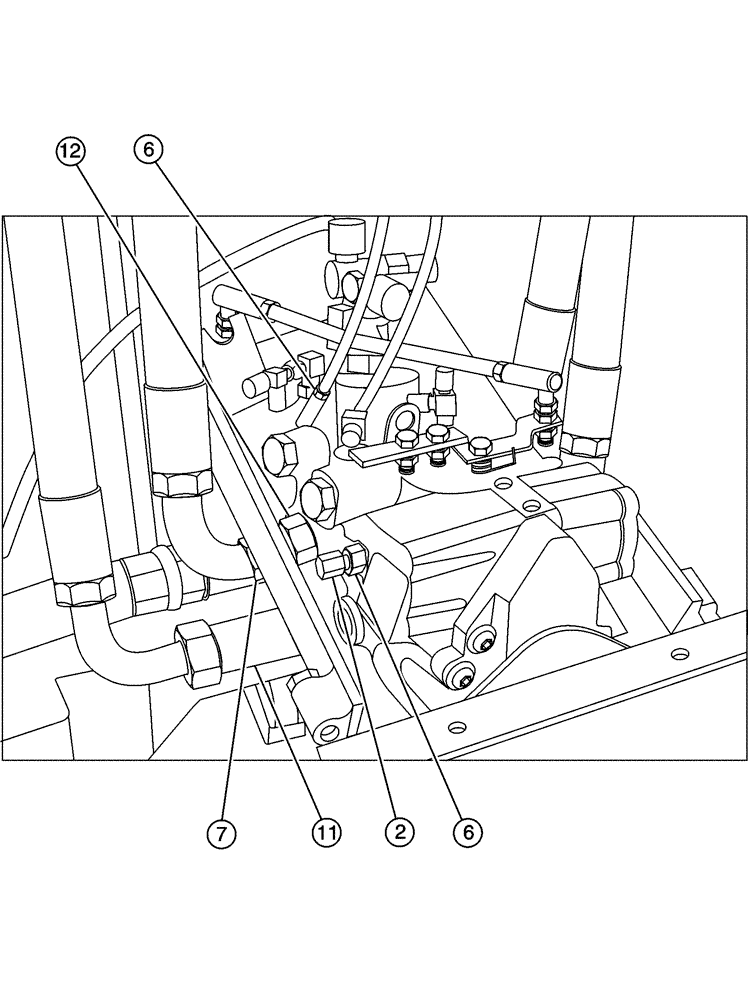

Запчасти Case IH SPX2130 (06-010[02]) - HYDROSTAT WITH ADAPTORS ASSEMBLY Hydraulic Plumbing

1

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

1шт.

2

BN21531

NUT,7/16"-20, 37 Degree

3шт.

3

BN29007A

PUMP

Tandem Hydrostatic

1шт.

BN29007AR

REMAN-HYDROSTAT PUMP

SPX2130 (9/99-5/04)

1шт.

BN29007AC

CORE-HYDRAULIC PUMP

Return number

1шт.

4

BN444007

O-RING

37 Flare12-10

2шт.

4a

BN98062

O-RING

SAE #10 (Bunan)

2шт.

Service Parts For Ref. 4

1шт.

5

BN445001

FITTING

12MJ-12MBx90

1шт.

5a

BN98017

O-RING

SAE-12 Buna N

1шт.

Service Parts For Ref. 5

1шт.

6

BN51589

FITTING

Adapter, STR, 37 Flaer X 9/16 OR

4шт.

6a

BN98019

O-RING

SAE - 6 Buna N

3шт.

Service Parts For Ref. 6

1шт.

7

BN52040

ADAPTER

FT, 0R x JIC 1 5/8-12

1шт.

7a

BN98063

O-RING

SAE #20 (Bunan)

1шт.

Service Parts For Ref. 7

1шт.

8

BN53573

TEE

FT, JIC-1 1/16, Male-Female

1шт.

9

BN53714

FITTING

RDC, 3/4-16 X 7/16-20 JIC

1шт.

10

BN53715

REDUCER

1-1/16"-12 x 3/4-16 JIC

1шт.

11

BN53918

ADAPTER

flat face x Or x 4.1

2шт.

11a

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

2шт.

Service Parts For Ref. 11

1шт.

11b

BN98016

O-RING

SAE-16 Buna N

2шт.

Service Parts For Ref. 11

1шт.

12

BN57223

FITTING

16Mor-16Mb

2шт.

12a

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

2шт.

Service Parts For Ref. 12

1шт.

12b

BN98016

O-RING

SAE-16 Buna N

2шт.

Service Parts For Ref. 12

1шт.

13

BN63548

ELBOW

Rework 446020

1шт.
