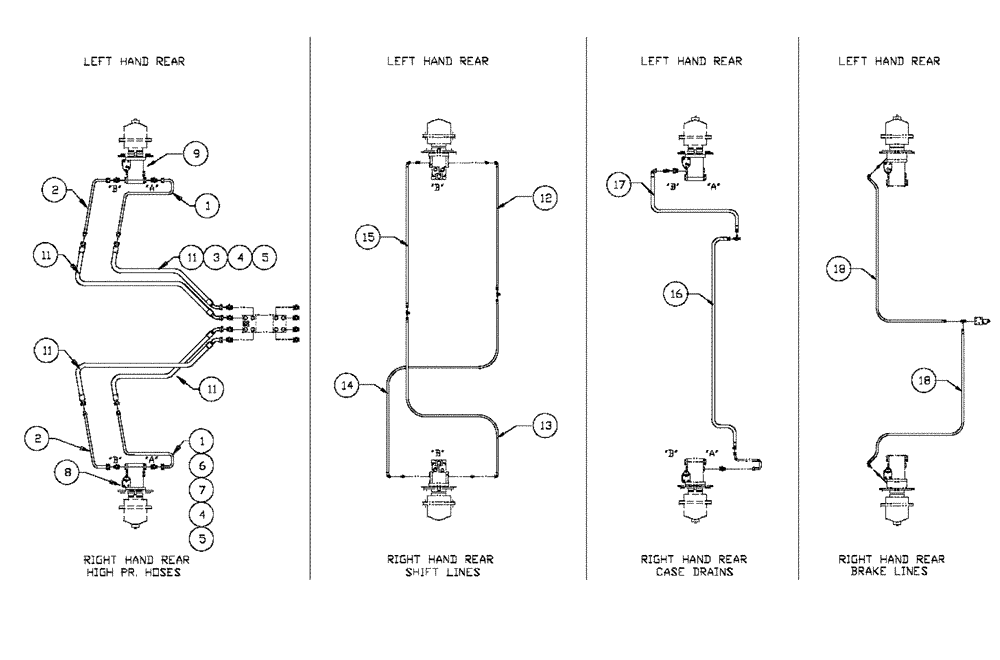

Запчасти Case IH SPX2130 (06-004) - HYDRAULIC SUSPENSION - REAR Hydraulic Plumbing

1

BN63817

TUBE

3/4"

2шт.

2

BN63816

TUBE

Steel 3/4"

2шт.

3

BN57235

CLAMP

Assy, 1"

4шт.

4

BN50534

BOLT

1/4-20 UNC X 2-1/2", HH, G5

8шт.

5

BN50051

NUT,1/4"-20, USR

8шт.

6

BN29782

CLAMP

Single (3/4" Tube)

4шт.

7

BN29784

COVER

Plate, Single, 3/4" Tube

4шт.

8

BN68240

RH Wheel, W/Adapter

1шт.

9

BN68239

Assembly, LH Wheel Motor W/Adapter

1шт.

ns

BN306350

Hose Kit (HYD. SUSP., R, N-Steer) (Ref #11-18)

1шт.

11

BN55135

HOSE

Assembly, 3/4" X 67-1/2"

4шт.

12

BN54177

HOSE

1/4" ID x 96", 100R1

2шт.

13

BN55168

HOSE

Assembly, 1/4" X 86"

1шт.

14

BN55166

HOSE

Assembly, 1/4" X 80"

1шт.

15

BN55167

HOSE

Assembly, 1/4" X 101"

1шт.

16

BN303831

Hose Assembly, 5/8" X 97"

1шт.

17

BN67870

HOSE

Assembly, 5/8" X 97"

1шт.

18

BN303834

Hose Assembly, 1/4" X 138"

1шт.
