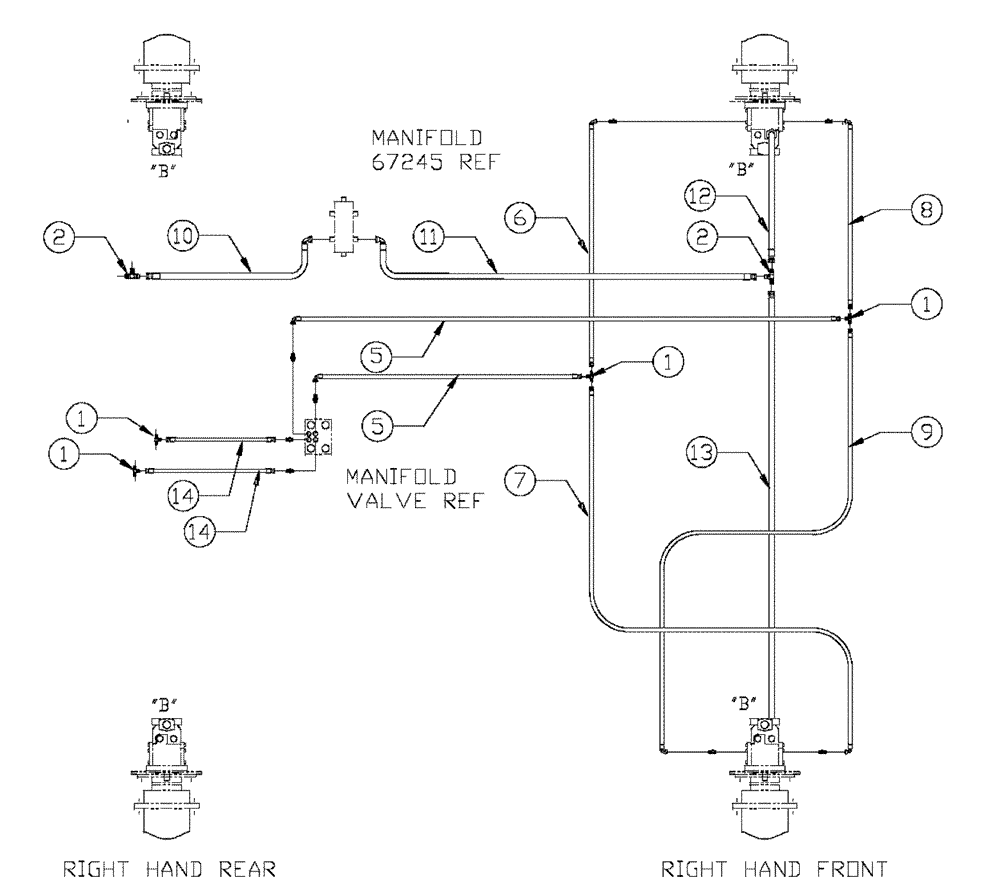

Запчасти Case IH SPX2130 (06-002) - CASE DRAIN / SHIFT LINE Hydraulic Plumbing

1

BN21422

TEE

7/16-20 JIC

4шт.

2

BN69127

TEE

10 X 10 X 12 JIC

2шт.

ns

BN306218

HOSE

Kit Case DR/Shift Line (Ref # 5-14)

1шт.

5

BN55180

HOSE

Assembly, 1/4" X 126"

2шт.

6

BN309809

HOSE

Assembly, 1 /4 X 115 100R1

1шт.

7

BN55170

HOSE

Assembly, 1/4" X 106"

1шт.

8

BN54150

HOSE,0.25" ID x 110.00", SAE 100R1

1шт.

9

BN55163

HOSE

Assembly, 1/4" X 101"

1шт.

10

BN303570

Hose Assembly, 3/4" X 105"

1шт.

11

BN303569

Hose Assembly, 3/4" X 55"

1шт.

12

BN303507

HOSE

Assembly, 5/8 X 100 100R1

1шт.

13

BN303531

HOSE

Assembly, 5/8" X 115"

1шт.

14

BN55188

HOSE

Assembly, 1/4" X 8.5"

2шт.
