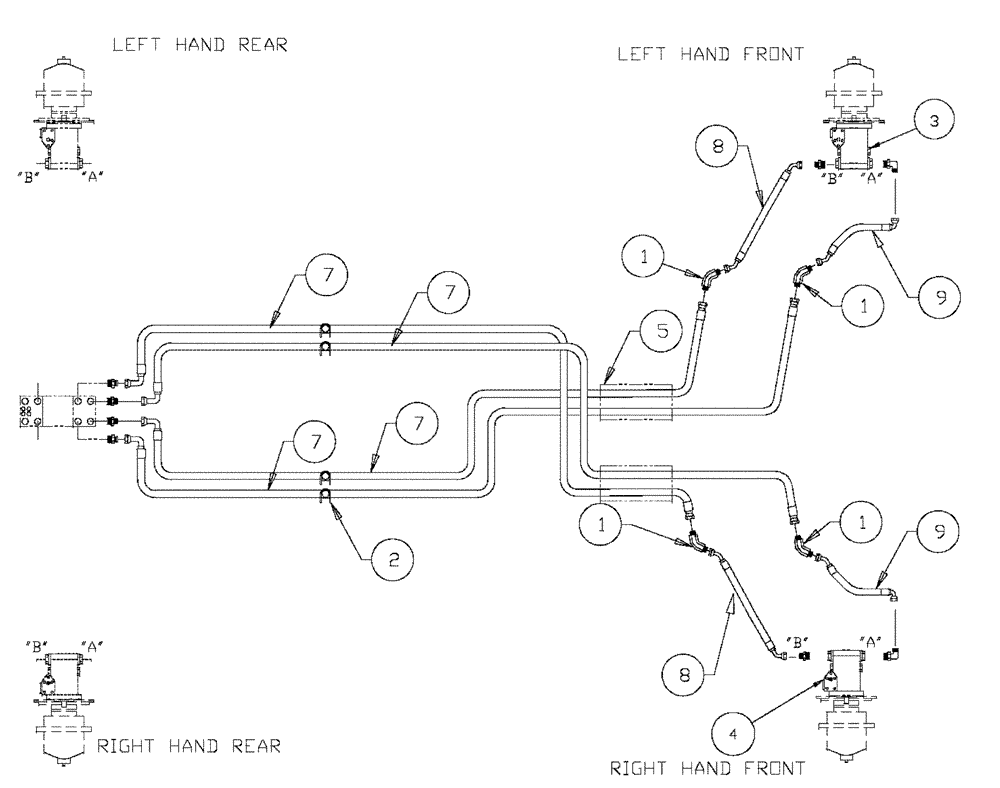

Запчасти Case IH SPX2130 (06-001) - BASIC UNIT Hydraulic Plumbing

1

BN53959

ELBOW

45° Bulkhead 3/4" JIC

4шт.

2

BN57235

CLAMP

Assy, 1"

4шт.

3

BN54215

MOTOR

Wheel

1шт.

4

BN54215

MOTOR

Wheel

1шт.

BN54215R

REMAN-HYD MOTOR

SPX2130, (9/99-5/04),

1шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4a

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

5

BN305375

SLEEVE

Hose 44" X 3.5 I.D.

2шт.

5a

BN67864

ADAPTER

1-1/16"-12 O-ring x 7/8-14 JIC

1шт.

5b

BN306209

HOSE

Basic Unit

1шт.

Ref # 7-9

1шт.

5c

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

5d

BN67864

ADAPTER

1-1/16"-12 O-ring x 7/8-14 JIC

1шт.

7

BN55137

HOSE

Assembly, 3/4" X 192" (H.P.)

4шт.

8

BN302902

HOSE

Assembly, 3/4" X 36" (H.P.)

2шт.

9

BN302901

HOSE

Assembly, 3/4" X 39" (H.P.)

2шт.
