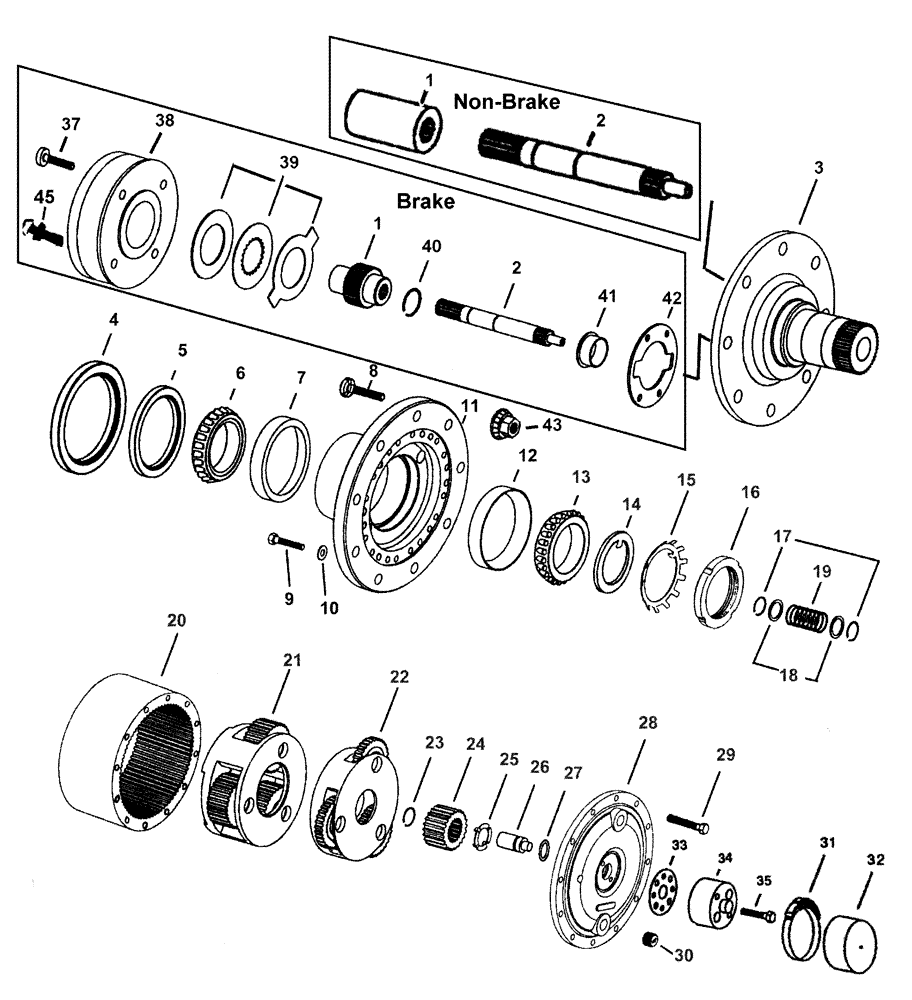

Запчасти Case IH SPX2130 (05-001) - POWER WHEEL HUB (AUBURN)- MODEL 7 Hub, Wheel & Tires

1

BN98370

COUPLING

Non Brake Unit

1шт.

2

BN98793

SHAFT

Input (15:1, 19:1, 21:1, 24:1) ( Non Brake Unit)

1шт.

2

BN98731

SHAFT

Input (32:1, 28:1), Non Brake Unit

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

1

BN98488

COUPLING

Brake Unit

1шт.

2

BN98794

SHAFT

Input- Brake (19:1, 21:1, 24:1)

1шт.

2

BN98795

SHAFT

Input-Brake (28:1) ( Brake Unit )

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN98732

SPINDLE

Non Brake Unit

1шт.

3

BN98798

SPINDLE

(Brake Unit)

1шт.

4

BN98740

SEAL

Trash

1шт.

4a

BN98855

SEAL KIT

Spindle

1шт.

Associated Part Of Trash Seal, P/N 98740

1шт.

Includes: 98809 And Refs. 5, 15, & 27

1шт.

4b

BN98802

SEAL KIT

Bearing

1шт.

Associated Part Of Trash Seal, P/N 98740

1шт.

Includes: 98809 and Refs. 5, 6, 7, 12, 13,15, & 27

1шт.

5

BN98723

SEAL

Oil

1шт.

6

BN98738

ROLLER BEARING,73.03mm ID x 30.16mm W

Inner

1шт.

7

513379

BEARING CUP,117.47mm OD x 23.81mm W

Inner

1шт.

8

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

9шт.

9

BN66932

BOLT

Hex Head Gr. 8

18шт.

10

BN98494

WASHER

flat

18шт.

11

BN98734

HUB

1шт.

12

BN276477

BEARING CUP

Race, Timken 3920

1шт.

13

BN98736

ROLLER BEARING

Outer

1шт.

14

BN98741

WASHER

Thrust

1шт.

15

BN98742

LOCK WASHER

1шт.

16

BN98743

BEARING LOCK NUT

Bearing

1шт.

17

BN98495

SNAP RING

Retaining

2шт.

18

BN98496

WASHER

2шт.

19

BN98497

SPRING

Disengage

1шт.

20

BN98744

RING GEAR

1шт.

21

BN98796

CARRIER

secondary assembly (15:1 ratio)

1шт.

This Assembly Must Be Replaced As An Assembly. It Cannot Be Rebuilt.

1шт.

21a

BN98797

CARRIER

Secondary Assembly (19:1, 21:1, 24:1, 28:1)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

21b

BN98745

CARRIER

Secondary Assembly (32:1)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22

BN66065

CARRIER

Primary Assembly - 32:1 (3 Gears, 30 Teeth Each, Sec. Sun Gear-16 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22a

BN66067

CARRIER

Primary Assembly - 28:1 (3 Gears, 30 Teeth Each, Sec. Sun Gear -19 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22b

BN66069

CARRIER

Primary Assembly - 24:1 Ratio (3 Gears-28 Teeth Each) Secondary Sun Gear - 19 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22c

BN66071

CARRIER

Primary Assembly -19:1 (3 Gears, 26 Teeth Each, Sec. Sun Gear - 19 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22d

BN67199

CARRIER

Primary Assembly -21:1 (3 Gears, 27 Teeth Each, Sec. Sun Gear - 19 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22e

BN67167

CARRIER

Primary Assembly - 15:1 (3 Gears)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22f

NSS

NOT SOLD SEPARAT

24 Teeth Each, SEC. Sun Gear - 22 Teeth)

1шт.

23

BN98730

RETAINER

(W/Brake 28:1, 32:1)

1шт.

23a

BN98792

RETAINER

(W/O Brake 15:1, 19:1, 21:1, 24:1) (W/Brake 19:1, 21:1, 24:1)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24

BN67166

GEAR

Primary Sun 15:1 (28 Teeth)

1шт.

24a

BN66070

SUN GEAR

Primary 19:1 (25 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24b

BN67198

SUN GEAR

Primary 21:1 (22 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24c

BN66068

GEAR

Primary Sun 24:1 (19 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24d

BN66064

SUN GEAR

Primary 28:1 (16 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24e

BN66064

SUN GEAR

Primary 32:1 (16 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

25

BN98501

THRUST WASHER

1шт.

26

BN98728

PLUNGER

disengage

1шт.

27

BN98729

SEAL

plunger

1шт.

28

BN98733

COVER

1шт.

29

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

8шт.

30

BN98487

PLUG

magnetic

1шт.

31

BN67578

CLAMP

plastic

1шт.

32

BN27372

CAP

hub cover

1шт.

33

BN98506

GASKET

quick release hub

1шт.

34

BN98860

COUPLING

Quick Disconnect

1шт.

35

BN50561

Hex Head

2шт.

36

BN98850

COUPLING

Quick Disconnect Assy

1шт.

Includes Refs. 33, 34, 35

1шт.

37

BN98839

SCREW

Torx Head T-50 (Brake Unit)

4шт.

38

BN66933

BRAKE

Piston Assembly (Brake Unit)

1шт.

39

BN98424

BRAKE

Pack (Brake Unit)

1шт.

40

BN98828

SNAP RING

Retaining (Brake Unit)

1шт.

41

BN98467

BUSHING

Sleeve (Brake Unit)

1шт.

42

BN98801

GASKET

Brake Unit

1шт.

43

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

36шт.

45

BN68545

BLEEDER

(Brake Unit)

1шт.

ns

BN98809

SEAL

1шт.

ns

BN67985

PLUG WRENCH

Mod. 7 Bearing Nut

1шт.

ns

BN67986

SPINDLE

Driver, Mod. 7/8

1шт.

ns

BN66382

HUB

Power Complete - No Brake 19:1

1шт.

ns

BN65586

Power Hub Complete - W/Brake 19:1

1шт.

ns

BN66385

HUB

Power Complete - No Brake 21:1

1шт.

ns

BN66384

Power Hub Complete - W/Brake 21:1

1шт.

ns

BN66380

HUB

Power Complete - No Brake 24:1

1шт.

ns

BN313879

PACKAGE

Hub, Power Complete - With Brake 24:1 Ratio

1шт.

ns

BN66386

HUB

Power Complete - No Brake 15:1

1шт.

ns

BN66060

HUB

Power Complete - W/Brake 28:1

1шт.

ns

BN63705

HUB

Power Complete - No Brake 32:1

1шт.
