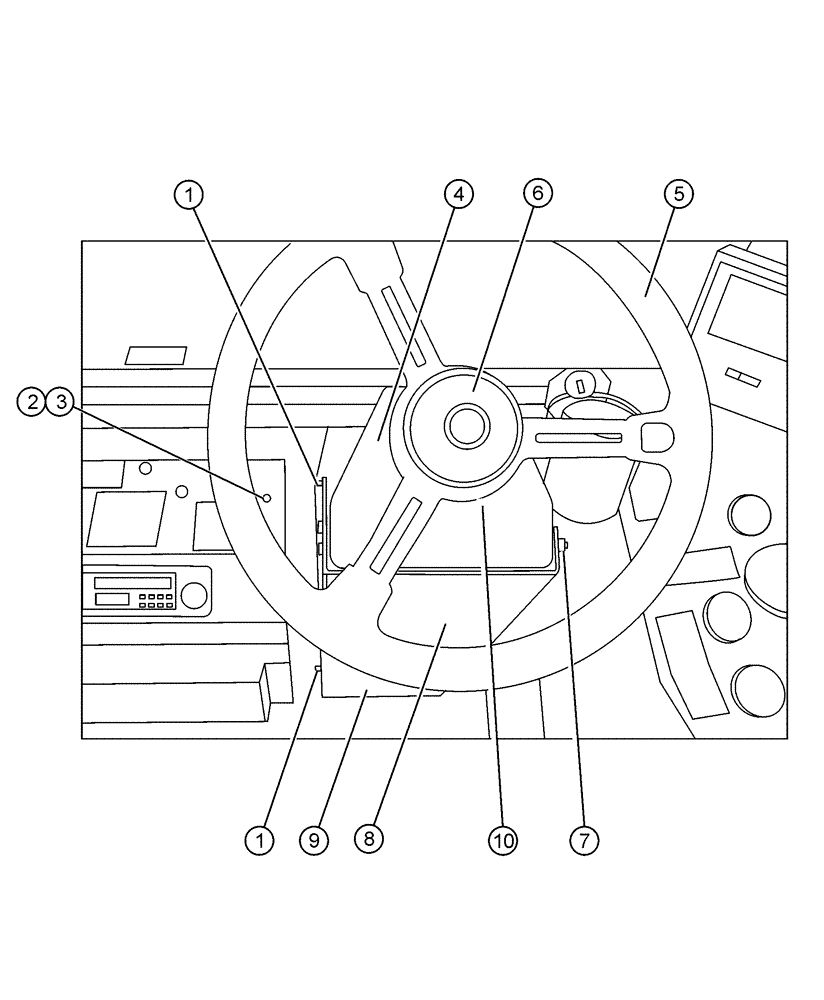

Запчасти Case IH SPX2130 (01-004) - CAB STEERING Cab Interior

1

BN29175

Pin -1/2" DIA. X 9.75"

2шт.

1a

BN52030

Snap (1/2" Shaft) Exte

4шт.

Associated Part Of Pin -1/2" DIA. X 9.75", P/N 29175

1шт.

2

BN30670

SPRING

3/8" OD X 2" (304 SS)

2шт.

3

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

4

BN29179

MOUNTING PLATE

Steerng Control

1шт.

5

BN27313

STEERING WHEEL

16" Dia.

1шт.

6

BN312561

CAP

Steering, Black

1шт.

6a

BN29232

JAM NUT

Steering Wheel

1шт.

Associated Part Of Cap, Steering Whl, Blk, P/N 312561

1шт.

7

BN29392

KNOB

3" With 3/8"-16 Female Thread

1шт.

7a

BN50777

BOLT

Bolt, 3/8-16 X 9, CH

1шт.

Associated Part Of Knob--3"-3/8-16 Female TH, P/N 29392

1шт.

8

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

Behind Steering Post

1шт.

8a

BN57226

ADAPTER

fitting, o-ring, 37 FL 8-6S

2шт.

Associated Part Of Orbitrol- Steering Control , P/N 29233

1шт.

8b

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

Associated Part Of Orbitrol- Steering Control , P/N 29233

1шт.

9

BN29181

Steering Assembly

1шт.

10

BN29235

STEERING COLUMN

1шт.

Behind Steering Wheel

1шт.
