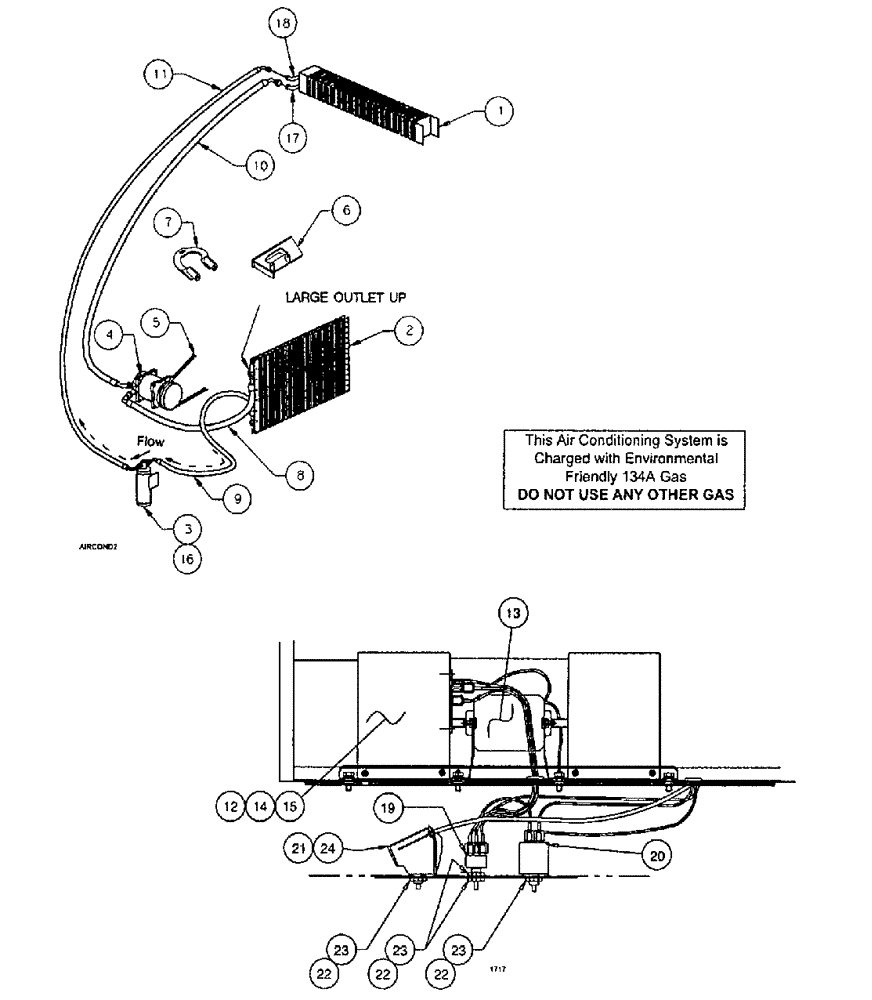

Запчасти Case IH SPX2130 (02-006) - AIR CONDITIONER Cab Exterior

1

BN66438

EVAPORATOR

Heater Coil Assembly

1шт.

2

BN316627

COIL

Condenser Coil

1шт.

3

BN67797

RECEIVER-DRYER

1шт.

4

BN68994

COMPRESSOR

Compressor (Poly "V" Clutch Pulley)

1шт.

5

BN307140

BELT,28.00 mm W x 2310.00 mm L

1шт.

6

BN68682

MOUNTING PLATE

Lower Bracket

1шт.

7

BN68685

MOUNTING PLATE

Upper Bracket

1шт.

8

BN316070

HOSE

13/32" X 55.5"

1шт.

9

BN316069

HOSE

5/16" X 60.0"

1шт.

10

BN316072

HOSE

1/2" X 265" (Low Pressure)

1шт.

11

BN316071

HOSE

5/16" X 265" (High Pressure)

1шт.

ns

NS

NOT SERVICED

Blower Assembly

1шт.

Includes Ref. 12, 13, 14, & 15

1шт.

12

BN316629

HOUSING

Blower

1шт.

13

BN316630

MOTOR

12V Double Shaft

1шт.

14

BN69706

BLOWER

Fan

2шт.

15

BN316631

Retainer

2шт.

ns

BN25982

AC Pulley

1шт.

16

BN67727

PRESSURE SWITCH

High Pressure

1шт.

17

BN69702

PRESSURE SWITCH

Low

1шт.

18

BN69872

VALVE, THERMAL EXPAN,Air Conditioing

Expansion

1шт.

19

73107110

BLOWER SWITCH

3 Speed

1шт.

20

BN69703

SWITCH

Cold Control

1шт.

21

BN316626

CABLE

Push-Pull

1шт.

22

BN67740

KNOB

Control

3шт.

23

BN67731

NUT

Switch/Control MTG.

4шт.

24

BN69710

CONTROL

Rotary

1шт.
