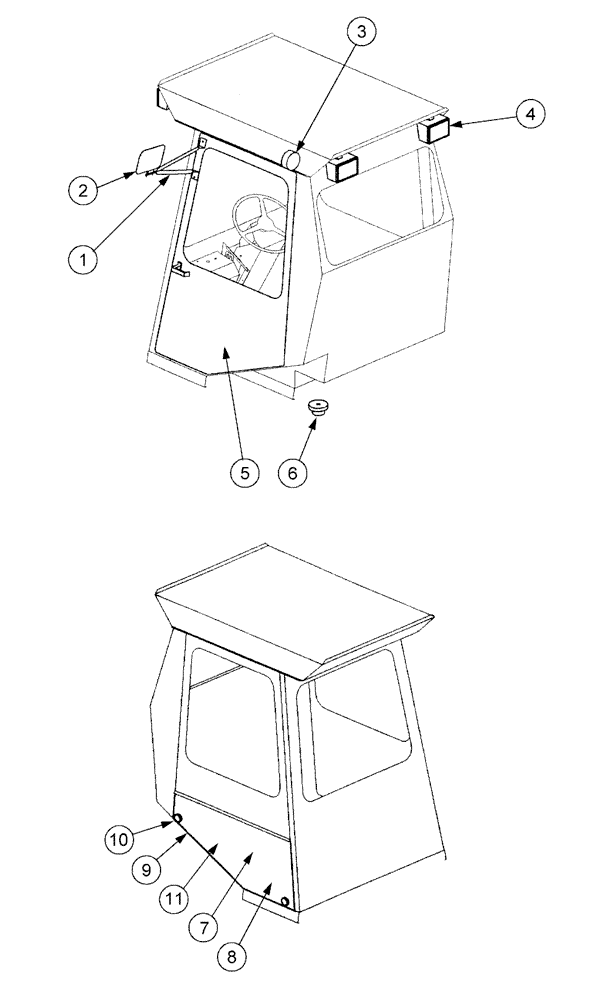

Запчасти Case IH SPX2130 (02-001) - CAB EXTERIOR PARTS Cab Exterior

1

BN63859

HYD TUBE

1" DIA. 14GA x 21.5

4шт.

2

BN29251

REPLACEMENT MIRROR

Head, Black

2шт.

3

BN324281

LIGHT

Amber Flashing

2шт.

3a

BN29973

LENS

Amber

4шт.

4

BN29252

LIGHT

Flood 900/H9406 12V

4шт.

4a

BN98185

LENS

Flood-Halogen 12V

4шт.

Service Parts For Ref. 4

1шт.

4b

BN29855

Plastic-Lamp,Wires

4шт.

Associated Part Of Light-Flood 900/H9406 12V, P/N BN29252

1шт.

4c

BN29749

WIRE HARNESS

Assembly-Upper Cab

1шт.

Associated Part Of Light-Flood 900/H9406 12V, P/N BN29252

1шт.

5

BN25951

DOOR

Assembly, Cab

1шт.

5a

BN25665

DOOR

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5b

BN29420

SEAL

Clip-On, 194"

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5c

BN29287

LATCH

Door, Inside, RH

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5d

BN29288

HANDLE

Locking, Outside, With Keys

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5e

BN98412

WRENCH

KEY, LOCK Door

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5f

BN29290

STRIKER PLATE

Door

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5g

BN29823

SHIM

14 ga 304 1" x 3"

3шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5h

BN29421

SEAL, GLASS

Rubber, Window, Inline, 124"

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5j

BN29425

GLASS

Tint 30" x 32" x .218

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5k

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

Parts Of Door Assembly-Cab., P/N BN25951

1шт.

5l

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service Parts For Ref. 5

1шт.

5m

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service Parts For Ref. 5

1шт.

6

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

7

BN65561

GROMMET

(Inside Access Panel-For Radar Cable)

1шт.

8

BN29497

Mount-14GA.304 12" X 16" (Inside Access Panel-For Fuses)

1шт.

9

BN25704

PANEL

16 ga HRS 20.53 x 43.21, Access

1шт.

9a

BN29962

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 17 1/4"

2шт.

Associated Part Of panel, P/N BN25704

1шт.

9b

BN29963

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 39"

1шт.

Associated Part Of panel, P/N BN25704

1шт.

9c

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

1шт.

Associated Part Of panel, P/N BN25704

1шт.

10

BN29392

KNOB

3" With 3/8"-16 Female Thread

2шт.

11

BN29907

Clip On 17.25" (Inside Access Panel-For Wiring)

1шт.

11a

BN29906

5/16 THR X 7/8 Eye (A/C Mounting)

2шт.

Not Shown

1шт.
