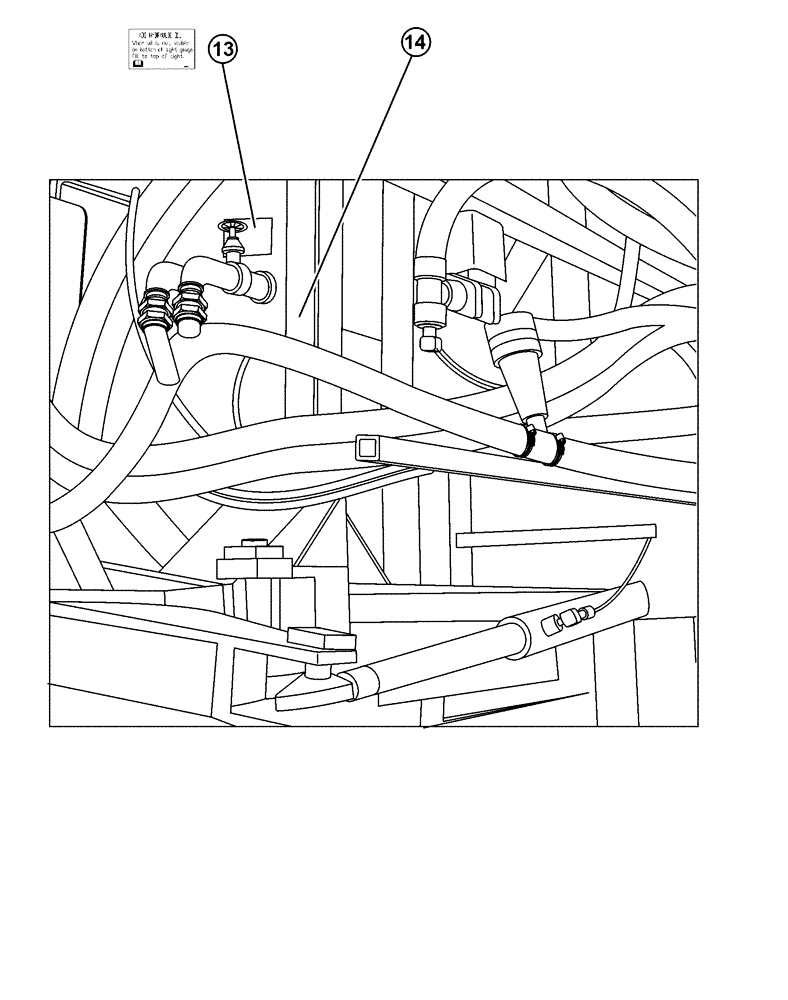

Запчасти Case IH SPX2130 (10-002[04]) - EXTERIOR DECALS (13) - DECALS

2

BN323436

DECAL

SPX 2130 LH Side

1шт.

2

BN316882

DECAL

SPX 2130 RH Side

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

311864A1

REFLECTOR

Retroreflective Amber

4шт.

4

337687A1

DECAL

emblem, "Patriot"

1шт.

5

186882A1

EMBLEM CASE/IH

cast nameplate

1шт.

5a

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

Associated Part Of Case IH Cast Nameplate, P/N 186882A1

1шт.

6

333097A1

DECAL

drive hubs

1шт.

7

336897A1

DECAL

torque wheel nut

1шт.

8

336613A1

DECAL

LH rear stripe

1шт.

8

336615A1

DECAL

RH rear stripe

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9

333088A1

DECAL

protective clothing

1шт.

10

BN63915

DECAL

Foam Marker

1шт.

11

BN65207

DECAL

Caution (Jumpstart)-Pat

1шт.

12

BN301704

DECAL

Charge With 134A Gas

1шт.

13

333090A1

DECAL

add hydraulic oil

1шт.

14

311863A1

REFLECTOR

Retroreflective Red

2шт.

15

311941

TUBE

Assembly With Hardware

1шт.

See Fig. 10-003

1шт.

15

311940

TUBE

RIGID TUBE Assembly With Hardware

1шт.

See Fig. 10-003

1шт.
