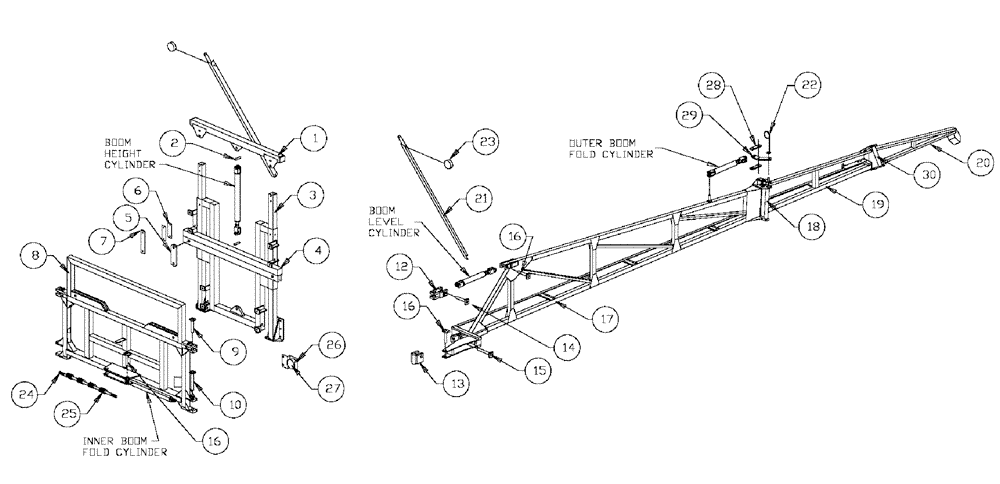

Запчасти Case IH SPX2130 (08-002) - BOOM ASSEMBLY - 24 METER (09) - BOOMS

1

BN67680

HANGER

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

3

BN9274

Slide - RH (20"-60") (Shown)

1шт.

3a

BN9273

Slide - LH (20"-60")

1шт.

Same Part Of Slide Weldment - RH (20"-60") (Shown), P/N. "9274" But Opposite Side

1шт.

3

BN67206

SLIDE

Rail LH (30"-70")

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN67207

SLIDE

Rail RH (30"-70")

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN67216

RACK

Weldment, Center Boom

1шт.

5

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

6

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

7

BN23268

BRACKET

Mount

4шт.

8

BN323475

FRAMEWORK

Center Section Boom

1шт.

9

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

10

BN65220

PIN

1.25". x 6.875

2шт.

11

BN52020

BOLT

1" X 7 1/2"

2шт.

11a

BN50092

NUT

1"-8 Std

2шт.

Associated Part Of Bolt-1" X 7 1/2", P/N BN52020

1шт.

11b

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

Associated Part Of Bolt-1" X 7 1/2", P/N BN52020

1шт.

12

BN300282

KIT

Swivel Assembly

2шт.

13

BN09072

PIVOT

Pivot Assembly

2шт.

14

BN65152

PIN

1.00 x 4.75

2шт.

15

BN65153

PIN

1.00 x 6.25

2шт.

16

BN65154

PIN

1. 00 x 3.75

6шт.

17

BN65357

BOOM

Inner - RH

1шт.

Shown

1шт.

17a

BN65358

BOOM

Inner-LH

1шт.

Same Part Of Boom Inner - RH (Shown), P/N. "65357" But Opposite Side

1шт.

18

BN65498

PIN

2шт.

19

BN323707

BOOM

Boom Middle - RH

1шт.

Shown

1шт.

19a

BN323708

BOOM

Boom Middle - LH

1шт.

Same Part Of Boom Middle Weldment - RH (Shown), P/N. "67924" But Opposite Side

1шт.

20

BN68819

SUPPORT

Breakaway - RH

1шт.

Shown

1шт.

20a

BN68820

SUPPORTING ARM

Breakaway - LH

1шт.

Same Part Of Boom Breakaway - RH (Shown), P/N. "68819" But Opposite Side

1шт.

21

BN63745

SUPPORT

2шт.

22

BN24490

BRACKET

hose guide

2шт.

23

BN324281

LIGHT

Amber Flashing

2шт.

23a

BN29973

LENS

Amber

4шт.

Service Parts For Ref. 23

1шт.

24

BN21197

SHAFT

1" x 36"

1шт.

25

BN20160

SPRING

Compression, 1 3/4" od x 5 1/2"

4шт.

26

BN29639

BRACKET, SUPPORTING

10 ga HRS 6" x 12"

2шт.

27

BN325828

TAIL LAMP

Red

2шт.

28

BN65341

BAR

4шт.

29

BN65342

BAR

2шт.

30

BN24487

PIN

75' boom

2шт.

ns

BN24328

BUMPER

Split Hose x 6"

2шт.

Not Shown

1шт.

ns

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

Not Shown

1шт.

ns

BN303883

SUPPORT

Brace (Boom Mast)

1шт.

Not Shown

1шт.

ns

BN303897

BRACKET

Bracket (For 303883)

1шт.

Not Shown

1шт.
