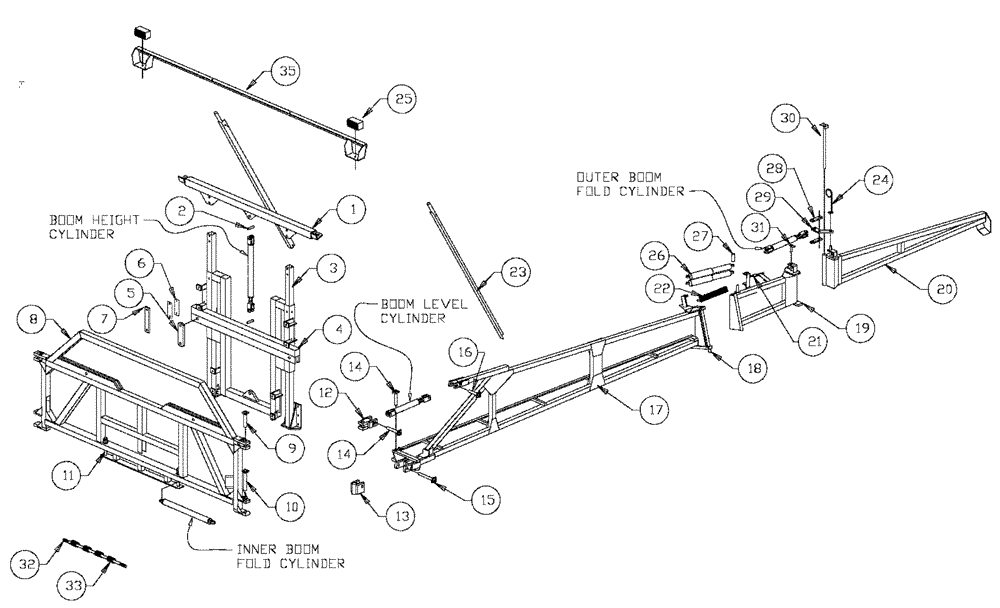

Запчасти Case IH SPX2130 (08-001) - BOOM ASSEMBLY-60 (09) - BOOMS

1

BN63501

HANGER

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

3

BN67207

SLIDE

Rail RH

1шт.

Shown

1шт.

3a

BN67206

SLIDE

Rail LH

1шт.

Same Part Of Slide Weldment - RH (Shown), P/N. BN67207 But Opposite Side

1шт.

4

BN67216

RACK

Center Boom

1шт.

5

BN67214

HANGER

4шт.

6

87324905

O-RING,2.487" ID x 2.693" OD x 0.103"

2 37/64" id 2 3/4" od 3/32" thick

8шт.

7

BN23268

BRACKET

Mount

4шт.

8

BN09256

BOOM

center section

1шт.

9

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

10

BN65220

PIN

1.25". x 6.875

2шт.

11

BN52020

BOLT

1" X 7 1/2"

2шт.

11a

BN50092

NUT

1"-8 Std

2шт.

Associated Part Of Bolt-1" X 7 1/2", P/N BN52020

1шт.

11b

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

Associated Part Of Bolt-1" X 7 1/2", P/N BN52020

1шт.

12

BN300282

KIT

Swivel Assembly

2шт.

12a

BN300286

BUSHING

4шт.

Parts Of Swivel Assembly., P/N BN300282

1шт.

12b

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Parts Of Swivel Assembly., P/N BN300282

1шт.

13

BN09072

PIVOT

Pivot Assembly

2шт.

14

BN65152

PIN

1.00 x 4.75

4шт.

15

BN65153

PIN

1.00 x 6.25

2шт.

16

BN65154

PIN

1. 00 x 3.75

2шт.

17

BN09276

BOOM

RH Boom Inner

1шт.

Shown

1шт.

17a

BN09275

BOOM

LH Boom Inner

1шт.

Same Part Of RH Boom Inner (Shown), P/N. BN9276 But Opposite Side

1шт.

18

BN89827

PIN

2шт.

19

BN09278

BOOM

RH Boom Outer

1шт.

Shown

1шт.

19a

BN09277

BOOM

LH Boom Outer

1шт.

Same Part Of RH Boom Outer (Shown), P/N. BN9278 But Opposite Side

1шт.

20

BN09263

BOOM

RH Boom Breakaway

1шт.

Shown

1шт.

20a

BN09262

BOOM

LH Boom Breakaway

1шт.

Same Part Of RH Boom Breakaway (Shown), P/N. BN9263 But Opposite Side

1шт.

21

BN06638

BRACKET

Take Up

2шт.

22

BN50542

SPRING

1шт.

23

BN63832

Brace - RH

1шт.

Shown

1шт.

23a

BN63833

SUPPORT

Brace - LH

1шт.

Same Part Of Brace - RH (Shown), P/N. BN63832 But Opposite Side

1шт.

24

BN24490

BRACKET

hose guide

2шт.

25

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

25a

529068

BULB,#1156, 12V, 21W

2шт.

Service Parts For Ref. 25

1шт.

25b

BN300878

LENS

amber

2шт.

Service Parts For Ref. 25

1шт.

25c

BN300881

CAP

Lens, Black

2шт.

Service Parts For Ref. 25

1шт.

26

BN21565

SHOCK ABSORBER

2шт.

27

BN89161

BUSHING

11/16" od x 14 GA x 3 7/16" long

4шт.

28

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

2шт.

29

BN21414

Bar

2шт.

30

BN09094

PIN

2шт.

31

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

2шт.

32

BN21197

SHAFT

1" x 36"

1шт.

33

BN20160

SPRING

Compression, 1 3/4" od x 5 1/2"

4шт.

35

BN69091

WORKING LIGHT

Flasher

1шт.

35a

BN24328

BUMPER

Split Hose x 6"

2шт.

Not Shown

1шт.

35b

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

Not Shown

1шт.

35c

BN303882

SUPPORT

Brace - Angle, Boom Mast

1шт.

Not Shown

1шт.

35d

BN24791

BRACKET

Cross Brace

1шт.

Not Shown

1шт.
