(12-001) - DICKEY - JOHN® CONTROLLER

Запчасти Case IH SPX2130 (12-001) - DICKEY - JOHN® CONTROLLER (06) - ELECTRICAL

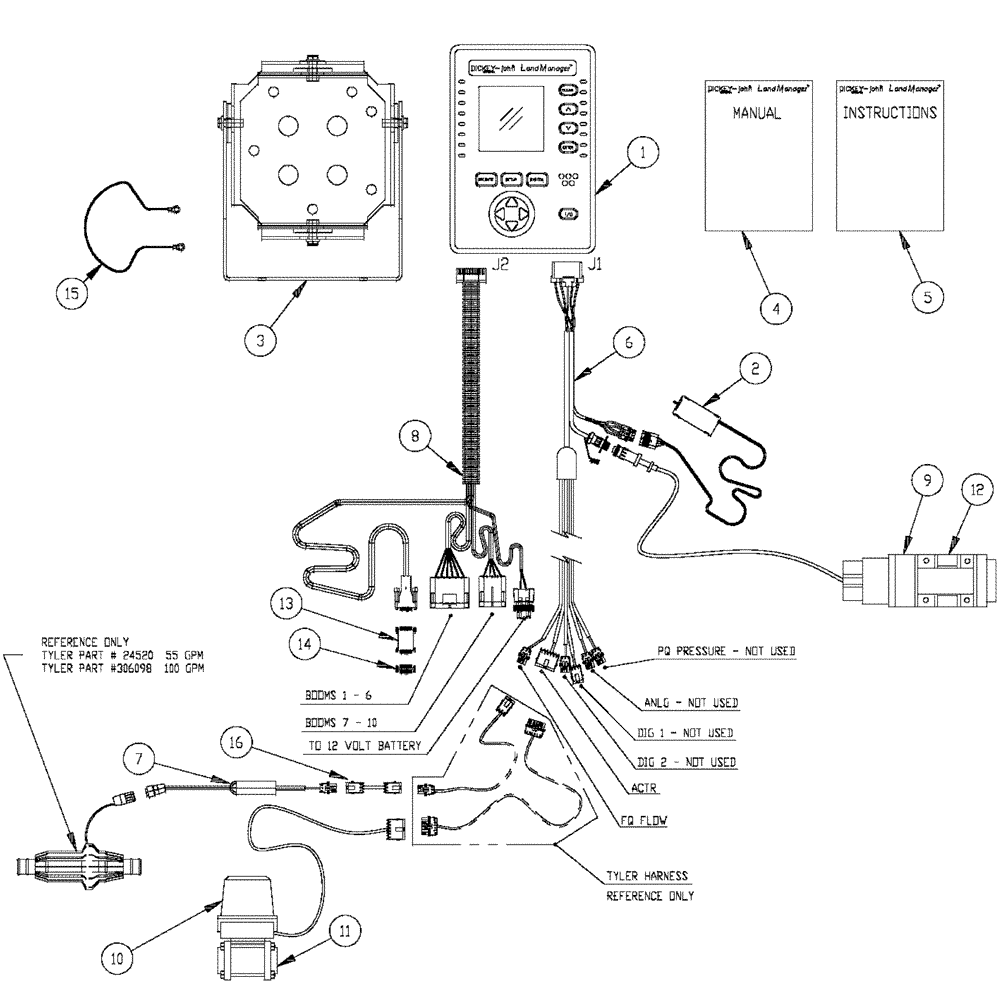

Схема запчастей Case IH SPX2130 - (12-001) - DICKEY - JOHN® CONTROLLER (06) - ELECTRICAL
15
10
2
4
7
11
6
12
14
16
1
3
13
13
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306830

CONTROL

DJ Land Manager

1шт.

2

BN306831

SWITCH

Assembly-DJ Module

1шт.

3

BN306832

BRACKET

DJ Land Manager

1шт.

4

BN306833

SERVICE MANUAL

DJ Land Manager

1шт.

5

BN306834

MANUAL, OPERATORS

Instructions-DJ Land MGR.

1шт.

6

BN306835

HARNESS

Land Manager

1шт.

7

BN307578

WIRE HARNESS

Flowmeter Adapter

1шт.

8

BN307579

HARNESS

J2 For Land MGR.

1шт.

9

BN95030A

RADAR

Sensor - Ground Speed

1шт.

9

BN95030AR

SENSOR

SPX2130 SPRAYER, Sensor Ground Speed (9/99-5/04)

1шт.

9

BN95030AC

CORE-SENSOR

Return Number

1шт.

10

BN98126

ACTUATOR

Valve-Liquid System

1шт.

11

BN98127

HYDRAULIC VALVE

1" Bundle-Liquid System

1шт.

12

BN98411

BRACKET

Kit, Mtg - Radar Gun

1шт.

13

BN310637

ADAPTER

ADAPTION Db9 Null Modem

1шт.

14

BN310638

PIN

9 Pin Female Gender Chang

1шт.

15

BN310639

STRAP

Ground

1шт.

16

BN312133

ADAPTER

3 Way Wpac

1шт.
