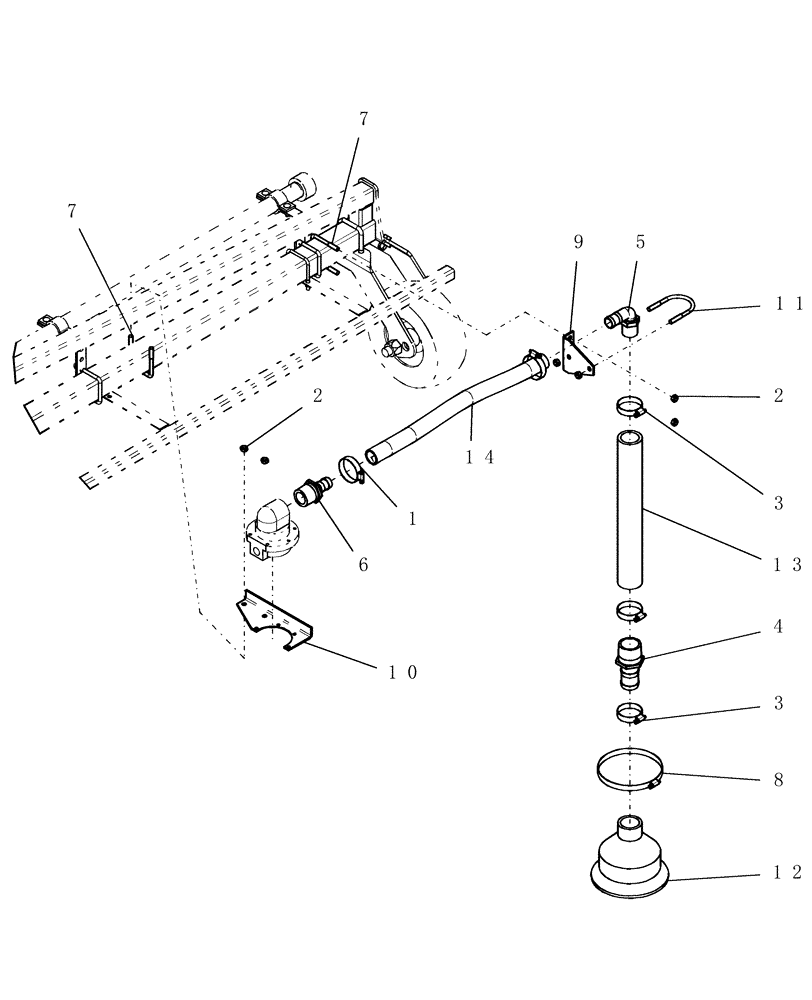

Запчасти Case IH 160 (39.100.45) - MARKER, FOAM - END DETAIL (39) - FRAMES AND BALLASTING

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

2

280736

NUT,5/16"-18, GC

6шт.

3

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

3шт.

4

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

5

87562259

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

fitting, poly 90º 1" mpt 1" hb

1шт.

6

8239

FITTING

poly straight adapter 1 1/4" 1" hb

1шт.

7

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

4шт.

8

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

1шт.

9

87501597

BRACKET

foam drop hose

1шт.

10

87502511

BRACKET

foamhead lt

1шт.

11

425021A1

CLAMP

clamp, 2" complete

1шт.

12

21926

HEAD

collector assembly, foam marker

1шт.

13

21930

HOSE

drop, foam marker - 24"

1шт.

14

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 34"

1шт.
