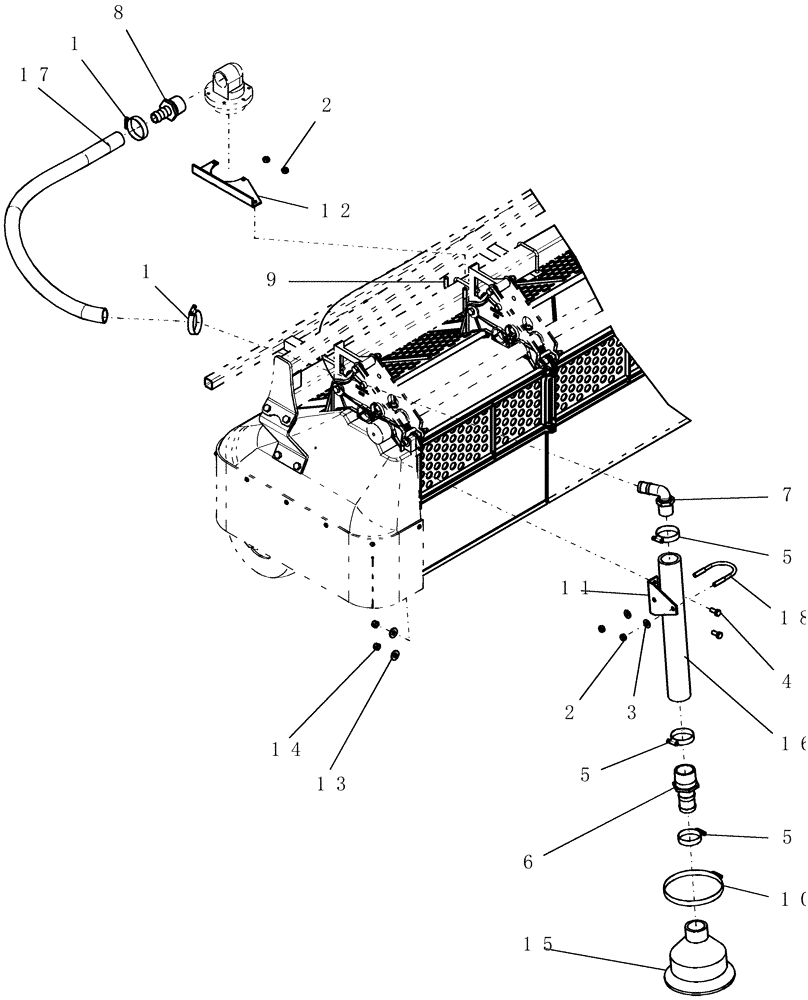

Запчасти Case IH 160 (39.100.44) - MARKER, FOAM - END DETAIL WITH WINDSCREEN (39) - FRAMES AND BALLASTING

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

2

280736

NUT,5/16"-18, GC

4шт.

3

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

4

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

3шт.

6

21931

FITTING

poly straight adapter 1 1/2" hb x 1 1/2" hb

1шт.

7

87577865

ELBOW

foam marker 1 1/2" streamer

1шт.

8

8239

FITTING

poly straight adapter 1 1/4" 1" hb

1шт.

9

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

4шт.

10

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

1шт.

11

87501597

BRACKET

foam drop hose

1шт.

12

87502511

BRACKET

foamhead lt

1шт.

12

87502509

BRACKET

foamhead rt

1шт.

13

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

14

280736

NUT,5/16"-18, GC

2шт.

15

21926

HEAD

collector assembly, foam marker

1шт.

16

21930

HOSE

drop, foam marker - 24"

1шт.

17

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

30-32" of hose required

1шт.

18

425021A1

CLAMP

1" x 2" br x 200 psi black

1шт.

100

10141

SELF-TAP SCREW

#6-24 x 1"

1шт.

Not Shown

1шт.

100

21927

CARTRIDGE

collector head - foam marker

1шт.

Not Shown

1шт.
