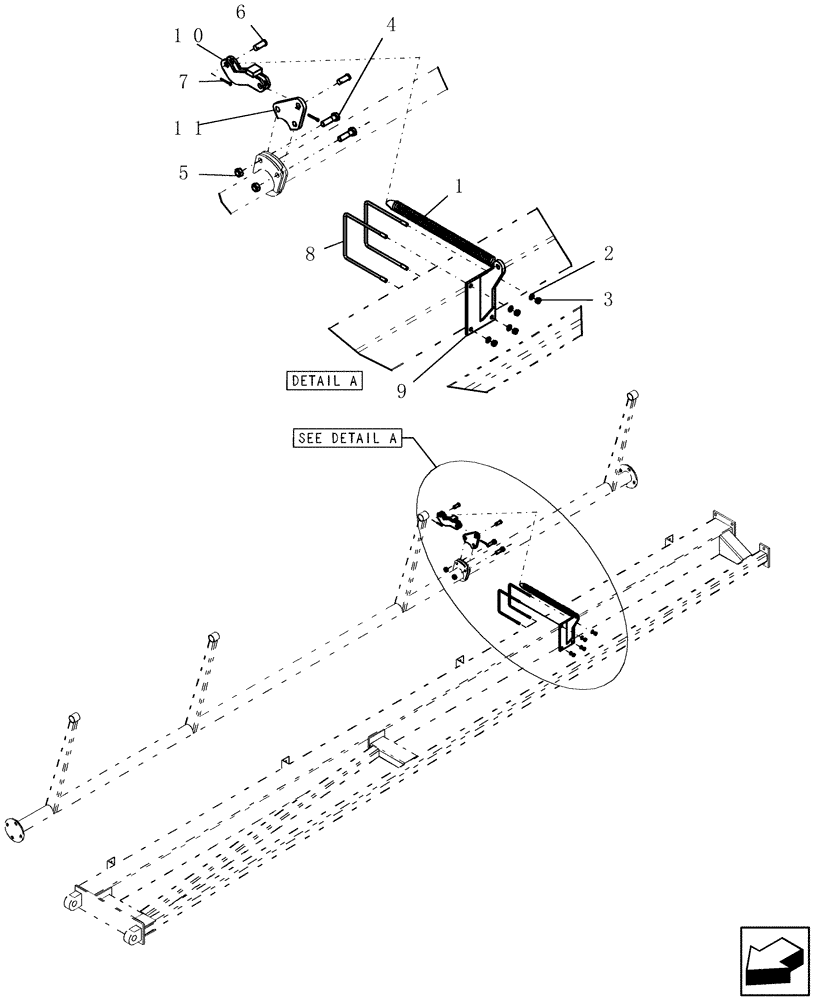

Запчасти Case IH 160 (39.100.37) - WHEELED BOOM - SPRING ASSIST (39) - FRAMES AND BALLASTING

1

87505479

SPRING

tension 13/64" wire 1 1/4" od x 12" long

1шт.

2

80681

LOCK WASHER,5/16"

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

2шт.

6

1841

CLEVIS PIN

1/2" x 1 1/4"

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

2шт.

8

21331

U-BOLT

us 5/16" x 5 3/8" w x 5 3/4" d 3/4" thread

2шт.

9

SQ-727

BRACKET

spring assist

1шт.

10

SQ-728

LINKAGE

secondary boom spring assist

1шт.

11

SQ-729

FRAME

section, assist link

1шт.
