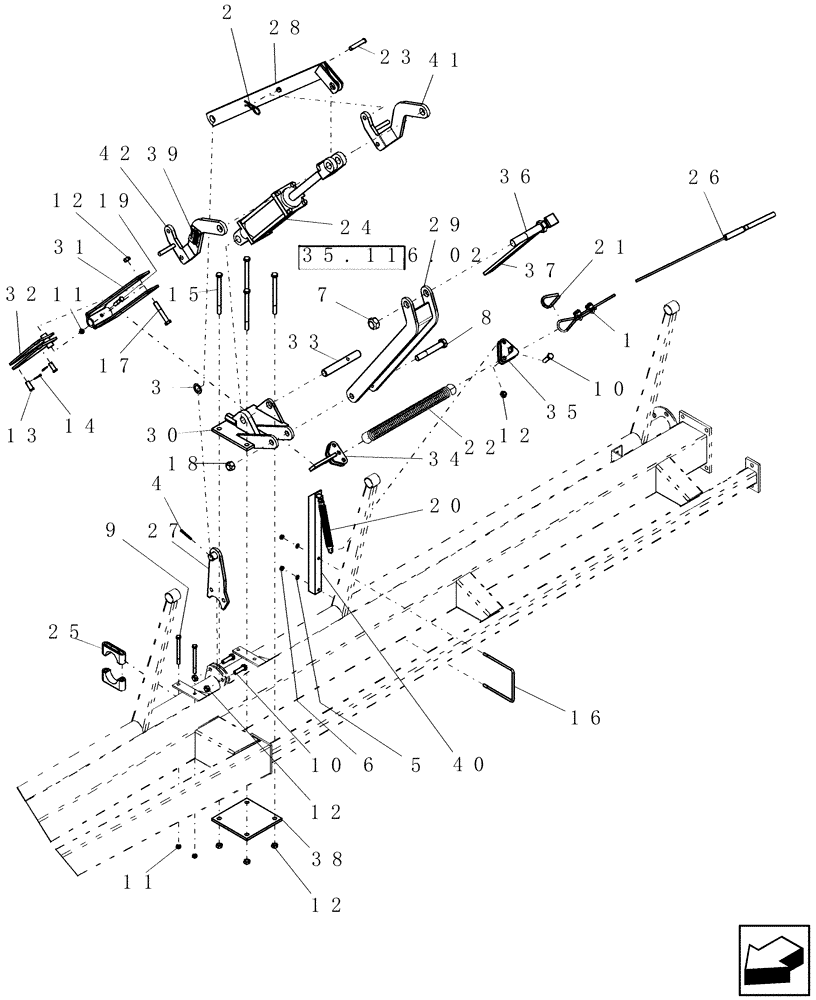

Запчасти Case IH 160 (39.100.30[01]) - WHEELED BOOM - MASTER CYLINDER LINKAGE ASSEMBLY (LEFT HAND SIDE) (39) - FRAMES AND BALLASTING

1

450628A1

CLAMP

cable 1/4" wire rope

2шт.

2

87327559

COTTER PIN

9/64" x 2 15/16"

1шт.

3

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

1шт.

4

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

5

80681

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

280286

NUT,1"-8, GB

1шт.

8

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

9

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

10

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

11

88902

NUT,3/8"-16

3шт.

12

86992215

LOCK NUT,1/2"-13, GC

8шт.

13

1841

CLEVIS PIN

1/2" x 1 1/4"

2шт.

14

80755

COTTER PIN,1/8" OD x 1" L

2шт.

15

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

4шт.

16

21331

U-BOLT

us 5/16" x 5 3/8" w x 5 3/4" d 3/4" thread

1шт.

17

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

18

280375

NUT,3/4"-10, GC

1шт.

19

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

1шт.

21

4956

LIFTING RING

5/16"

1шт.

22

87505303

TENSION SPRING

5/16" wire 1 5/64" od x 18" long

2шт.

One used per side on 50' base Models, two used per side on 80' base Models

1шт.

23

6855

CLEVIS PIN

1/2" x 2 3/4" fl

1шт.

24

7954

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 3/4" x 8" Monarch 3000 psi 1 1/8" rod

1шт.

Refer to 35.116.02

1шт.

25

87558400

HALF-BUSHING

molded 2 3/8" id

2шт.

26

SP-467

CABLE

fold 1/4" x 14'

1шт.

27

SQ-730

BOSS

rotation, secondary boom

1шт.

28

SQ-731

LIFT LINK

secondary

1шт.

29

SQ-733

LINK

cylinder control

1шт.

30

SQ-734

BRACKET

mount, cylinder base LH

1шт.

31

SQ-736

BRACKET

mount, caster assist lever

1шт.

32

SQ-737

LEVER

caster assist

1шт.

33

SQ-738

PIN,25.4mm OD x 177.8mm L

cylinder plated

1шт.

34

SQ-739

CLEVIS

mount, spring

1шт.

35

SQ-740V2

PLATE

spring

1шт.

36

SQ-741

SPECIAL BOLT

cyl rod end

1шт.

37

SQ-742

LINK

cylinder lever pull

1шт.

38

SQ-744

BACKING PLATE

cylinder

1шт.

39

SQ-780.27

CAUTION DECAL

transport lock

2шт.

40

SQ-905

HANGER

spring support

1шт.

41

SQ-921

LOCK CYLINDER

with handle RH

1шт.

42

SQ-922

LOCK CYLINDER

with handle LH

1шт.
