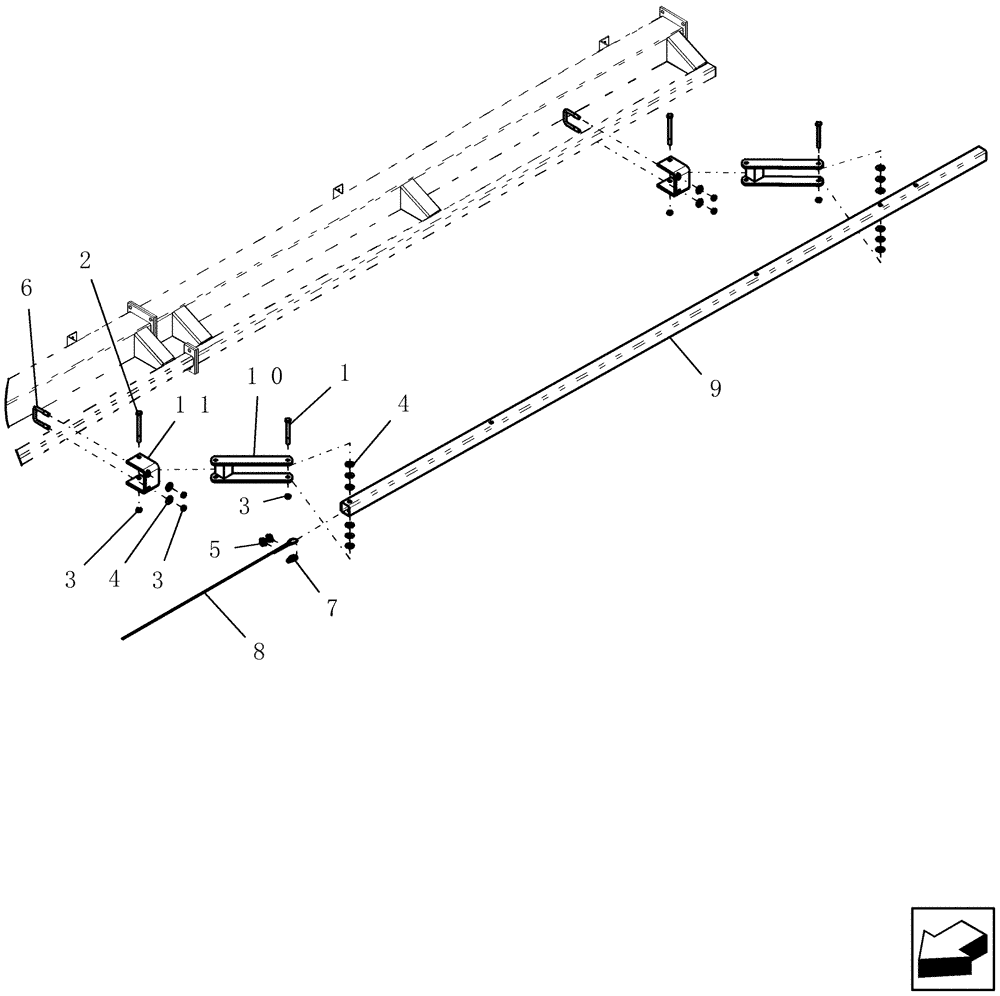

Запчасти Case IH 160 (39.100.13) - WHEELED BOOM - BREAKAWAY TRIP BAR ASSEMBLY (39) - FRAMES AND BALLASTING

1

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

2

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

8шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

16шт.

5

432641A1

CLAMP

cable 3/16" wire rope

2шт.

6

3964

U-BOLT

us 1/2" x 2 1/8" w x 3" d 1" thread

2шт.

7

87577687

EYELET

cable thimble 3/16"

1шт.

8

SQ-679

CABLE

3/16" x 400"

1шт.

9

SQ-167

BAR

trip, breakaway

1шт.

10

SQ-676

LINK

breakaway trip

2шт.

11

SQ-677

PIVOT

breakaway

2шт.
